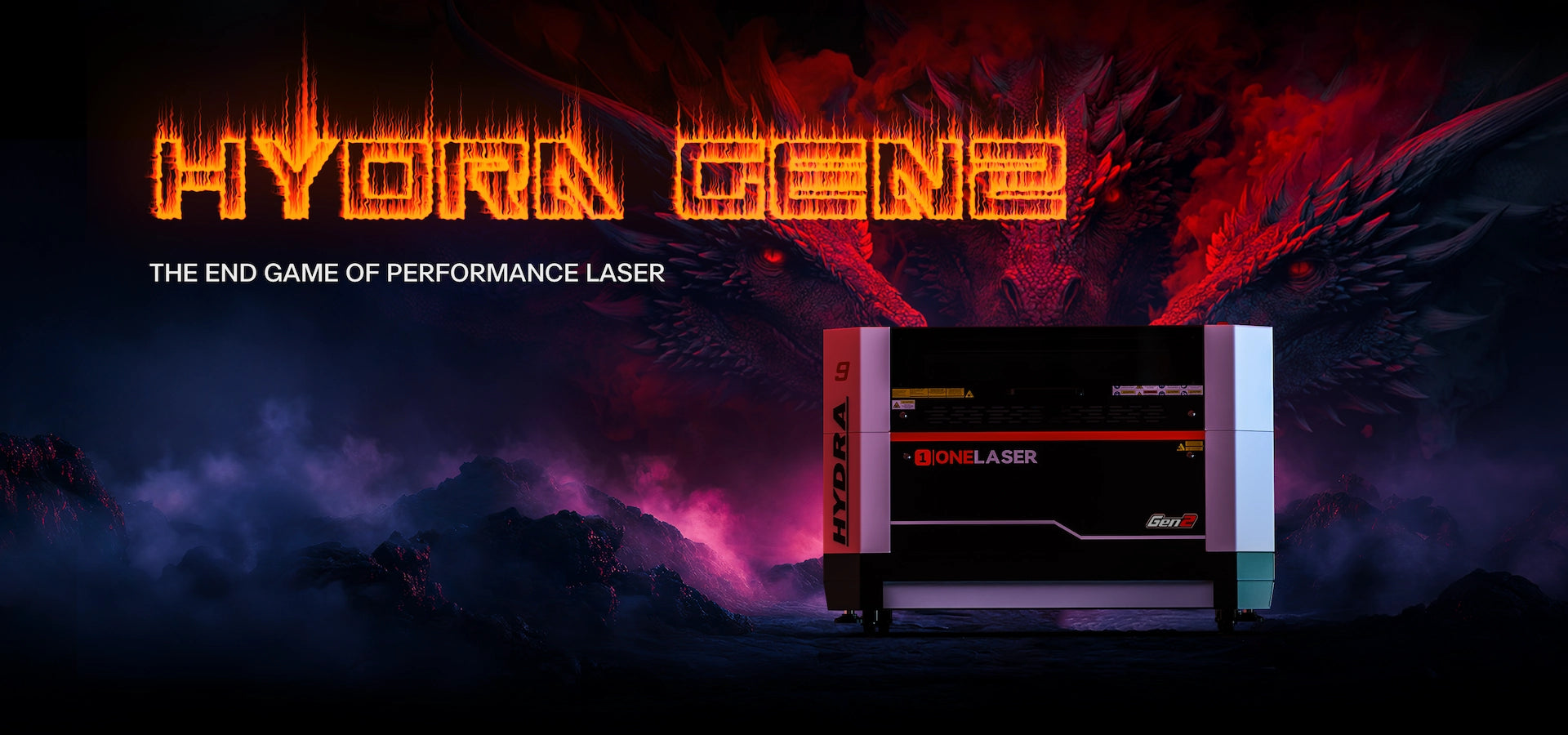

OneLaser Hydra Gen 2 High Performance Laser Engravers and Cutters

True Production Speed. Real Industrial Performance.

The Hydra Gen 2 Series represents the next evolution of high-performance laser engraving and cutting systems—engineered for professionals who demand real speed, uncompromised precision, and long-term reliability in production environments.

Powered by an all-new ultra-high-speed DC servo motor, Hydra Gen 2 delivers a true 2,000 mm/s engraving speed with 4G acceleration—not a theoretical lab number, but validated, production-grade performance that holds detail even at maximum speed. The result: higher throughput, consistent quality, and higher profit per job.

Designed, tested, and supported by OneLaser’s U.S.-based engineering team, Hydra Gen 2 is built to scale with your business—from fine-detail engraving to large-format, multi-material industrial workflows.

True 2,000 mm/s Speed with Industrial-Grade 4G Acceleration

Hydra Gen 2 is driven by a next-generation DC servo system paired with a rigid, vibration-optimized mechanical structure. Unlike machines that lose detail as speed increases, Hydra Gen 2 maintains sharp edges, uniform depth, and consistent grayscale even during ultra-fast operation.

This is not marketing speed—it’s real, repeatable production performance that allows you to finish jobs faster without sacrificing quality.

Key benefits:

• True 2,000 mm/s engraving speed
• Industrial-grade 4G acceleration
• Stable detail at maximum velocity
• Higher output per hour, lower cost per unit

Smart Dual Air-Assist System – Fully Automatic, No Manual Tuning

Hydra Gen 2 features an intelligent Smart Dual Air-Assist System that automatically switches airflow modes based on the task:

• Low-Air Mode for clean engraving corners, fine detail, and reduced charring
• High-Air Mode for faster cutting, deeper penetration, and improved safety


The system is fully software-integrated with LightBurn and MakerBoost, requiring no manual adjustments. You get cleaner edges, better surface quality, and consistent results—every time.

One Platform. Three Technologies. Infinite Possibilities.

The Hydra Gen 2 platform is designed for true modular expansion, allowing users to configure the laser system that fits their workflow today—and upgrade tomorrow.

RF + CO₂ Dual-Laser Configuration

Users can pair:

• 38W RF high-speed engraving tube with
• High-power glass CO₂ cutting tube

This enables OneLaser’s patented multi-laser intelligent switching, allowing seamless transitions between engraving and cutting within a single workflow in LightBurn.

RF + Fiber Configuration (Ultimate All-Material Solution)

Alternatively, users can configure:

• 70W RF laser tube combined with
• Q-Switch Fiber 30W / 50W Upgrade Module

This configuration unlocks true all-material processing, from ultra-fine CO₂ engraving on wood, leather, and acrylic to industrial-grade metal marking and 2.5D flying engraving.

Note: The Dual-Laser 38W model does not support the fiber-laser upgrade unless upgraded to the 70W RF version.

Q-Switch Fiber Upgrade – Industrial Metal Marking Unlocked

The optional Q-Switch Fiber 30W / 50W Upgrade Kit transforms Hydra Gen 2 into a high-speed metal processing platform.

Capabilities include:

• Large-format metal engraving
• Ultra-fast 2.5D flying marking
• Stable, repeatable industrial output
• High-contrast, permanent metal marks

Perfect for stainless steel, aluminum, anodized metals, coated metals, and more—without sacrificing CO₂ versatility.

RF Laser Clarity – Ultra-Sharp Detail & True 3D Engraving

Hydra Gen 2 RF lasers produce a tighter, rounder, high-frequency beam spot, enabling:

• Higher DPI engraving
• Up to 4× sharper detail
• Uniform energy distribution
• Flawless grayscale response

The 70W RF laser delivers consistent engraving depth and smooth grayscale transitions, making true 3D photorealistic engraving possible—something glass tubes simply cannot achieve.

Longer Lifetime. Lower Maintenance. Higher ROI.

Hydra Gen 2’s air-cooled RF laser design eliminates the need for water chillers—removing common failure points such as leaks, condensation, tube explosions, and electrical risks.

Advantages include:

• 20,000–30,000 hour laser lifespan
• No constant tube replacement costs
• Near-zero routine maintenance
• Slower power decay over time

This dramatically increases long-term ROI while keeping your machine productive instead of down for service.

Deeper Cuts with Intelligent Power Control

Thanks to high-frequency adjustable PWM, RF lasers maintain fine detail during high-speed engraving. When frequency is reduced, pulse energy increases significantly—delivering up to 1.85× deeper cuts than glass tubes at the same wattage.

You get elite engraving and cutting performance in a single system.

Proactive Protection & NVH-Optimized Stability

Hydra Gen 2 is built for long production runs:

• Real-time lens temperature monitoring with overheating alerts
• Early contamination warnings to protect expensive optics
• NVH-optimized structure to reduce noise, vibration, and resonance
• No internal compressors, chillers, or unnecessary fans

The result is consistent quality, minimal drift, and true mass-production reliability.

Precision Control, Autofocus & Visual Positioning

• Automated autofocus with precision Z-axis control
• High-visibility red-dot positioning for pinpoint alignment
• Millimeter-level visual positioning accuracy
• Reduced setup time and human error

This ensures higher consistency, faster throughput, and professional results—even for complex jobs.

Industrial DSP Control & Rock-Solid Electronics

The GT5 Smart Control Panel combines physical keys with a touchscreen interface, supporting:

• Offline operation
• File preview
• Diagnostics
• Full parameter control

The system is engineered with scientifically validated electrical design, extended fatigue testing, and extreme stress testing—ensuring long-term stability in demanding environments.

Safety-First, Fully Enclosed Industrial Design

Hydra Gen 2 features:

• Fully enclosed internal chassis
• Smoke and debris isolation from electronics
• Built-in particulate and airflow monitoring
• Rail over-temperature detection with automatic laser shutdown
• FDA Class 1 certified safety

Additional safety features include lid-open interlock protection and power-loss resume to prevent wasted materials.

Built to Fit Your Workflow & Your Space

•
  Front-to-back pass-through door for long materials
• Modular three-section design fits through standard doorways
• Multi-protocol connectivity: USB, Ethernet, Wi-Fi
• Full rotary compatibility via universal 4-pin interface
• Supports 1.5″ to 4″ lenses with fast lens swapping


Multiple Working Sizes – Scale with Confidence

The Hydra Gen 2 Series offers a full range of working areas:

• Hydra7: 700 × 500 mm (27.6 × 19.7 in)
• Hydra9: 900 × 600 mm (35.4 × 23.6 in)
• Hydra13: 1300 × 900 mm (51.2 × 35.4 in)
• Hydra16: 1600 × 1000 mm (63.0 × 39.4 in)

From fine engraving to large-format production, there’s a Hydra Gen 2 for every stage of growth.

U.S. Engineering Support & 1-on-1 Training

Every Hydra Gen 2 customer receives:

• Direct support from OneLaser’s U.S.-based engineering team
• 1-on-1 installation and training sessions
• Faster response times and expert-level troubleshooting

You’re not just buying a machine—you’re gaining a long-term production partner.
