HYDRA 9

Starting at:

$6,995.00

HYDRA 7 HYDRA 9 HYDRA 13 HYDRA 16 Request Quote

1 8

Join the Community in Industry

100% USA Engineers With Lifetime Support

Complimentary Business Consultation

3-Year Warranty:Unmatched Reliability

Revolutionary Performance at Remarkable Price!

Designed, Engineered, and Perfected in the USA!

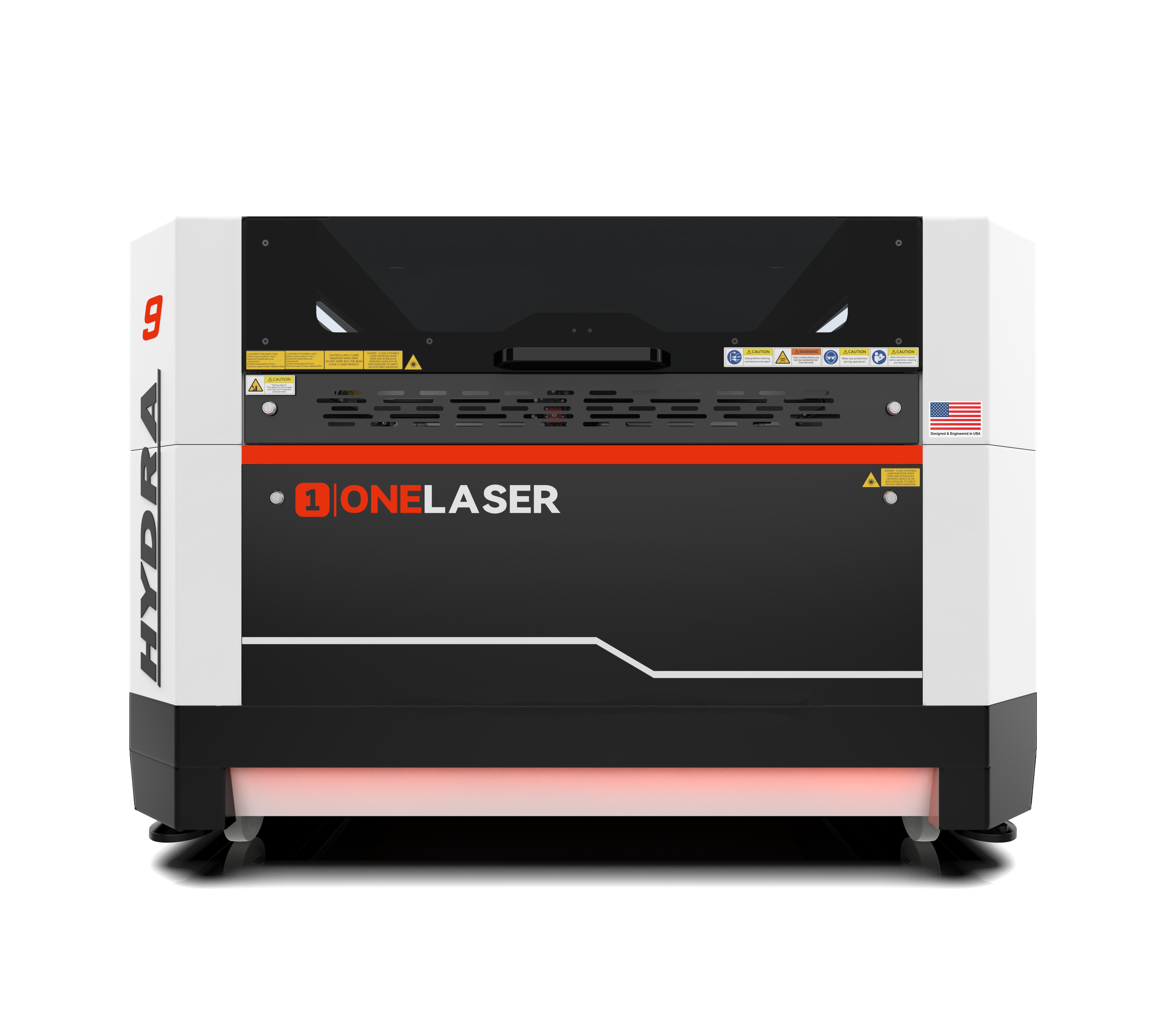

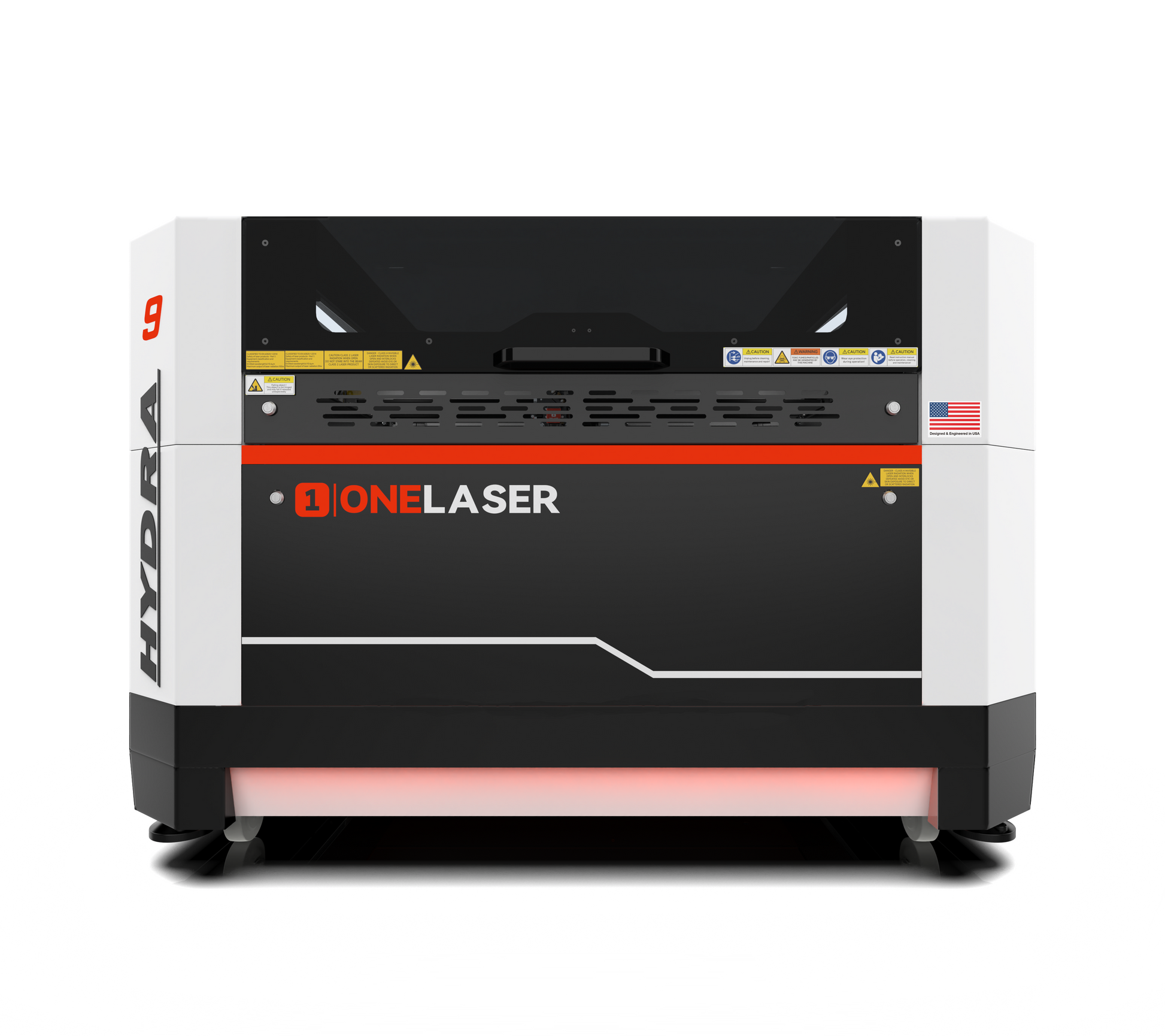

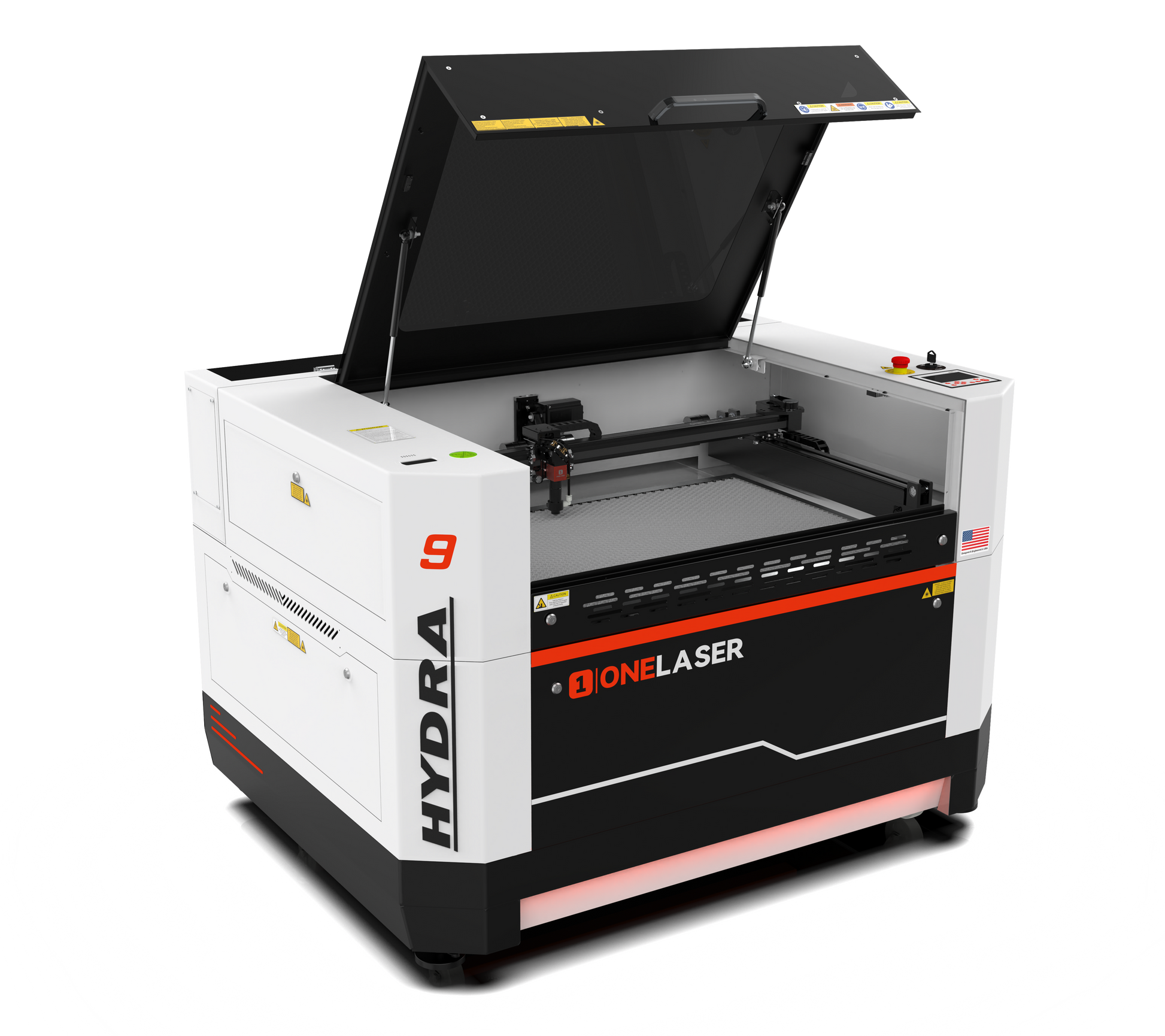

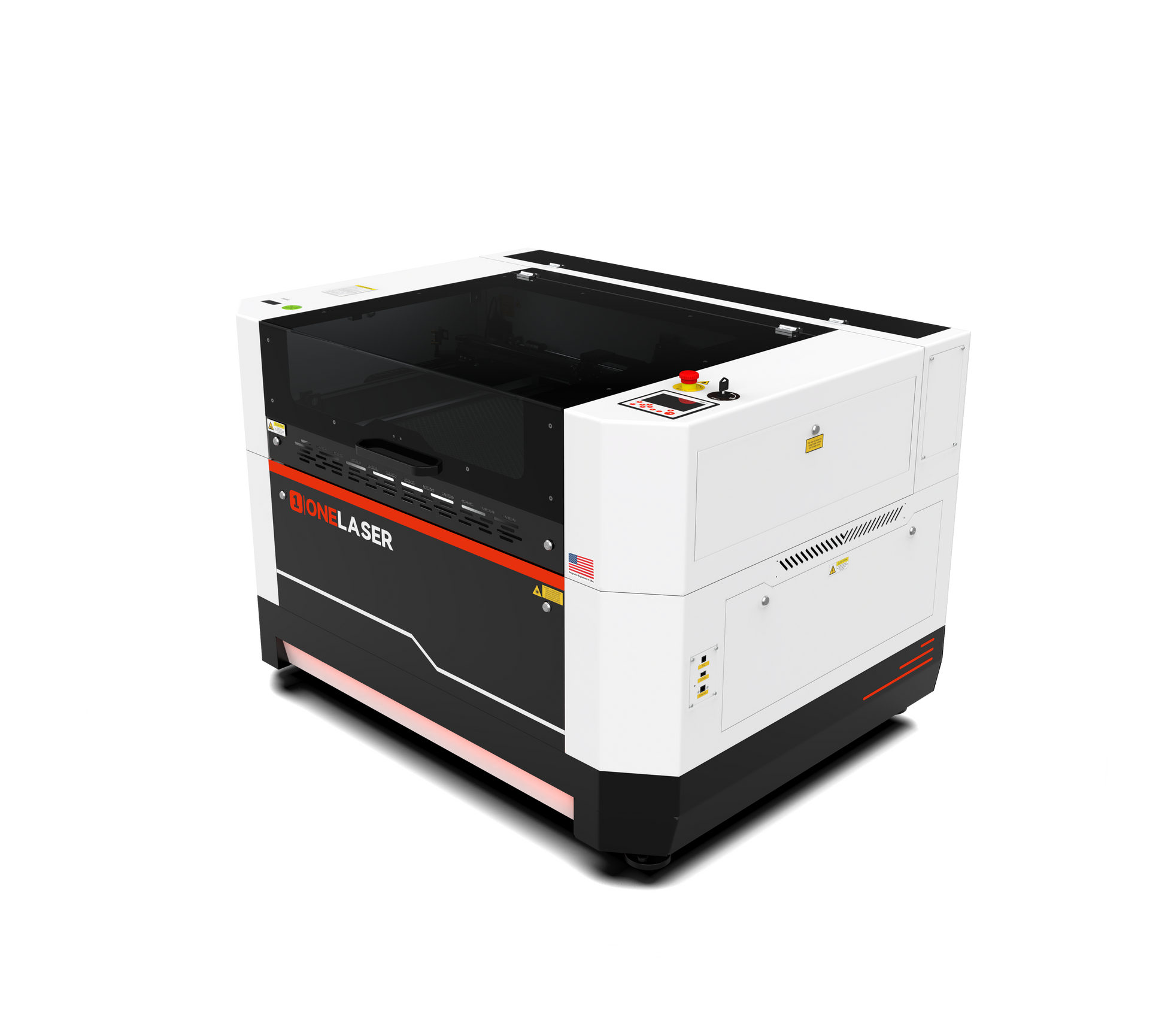

ONELASER “HYDRA 9” High-Performance CO2 Cabinet Dual-Laser System (100W DC Glass Tube/38W RF Metal Tube Hybrid)

Name: ONELASER “HYDRA 9” High-Performance CO2 Cabinet Dual-Laser System (100W DC Glass Tube/38W RF Metal Tube Hybrid)
Brand: OneLaser
SKU: Hydra 9-10000
Price: 6995.0 USD
Availability: InStock

Excellent

$6,995.00

~~$9,999.00~~ $6,995.00

save $3,004.00 Sold out

Shipping calculated at checkout.

Financing For As Low As $139.86 /Mo. Apply Now

Memorial Deals Ending

Days
Hours
:
Mins
:
Secs

Fulfillment Location

Ship from Factory Warehouse

Dispatch from US Warehouse

Package

100W Glass Tube

$6,995.00

$9,999.00

$7,695.00

$10,999.00

The End Game of Industrial Laser

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"High-precision 100W Glass Tube with 0.001mm accuracy and 1200mm/s speed for efficient, safe, and durable engraving. Overseas shipping delivers unbeatable value in 35 days."}]}]}

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"High-precision 100W Glass Tube with 0.001mm accuracy and 1200mm/s speed for efficient, safe, and durable engraving. Dispatches from US warehouse in 3-5 business days for fast delivery."}]}]}

100W Glass Tube & 38W RF Metal Tube

$8,595.00

$10,999.00

$9,195.00

$11,999.00

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The most cost-effective dual-laser system with 100W Glass Tube and 38W RF Metal Tube, offering 0.001mm precision, high-speed engraving, and enhanced fume control, custom-assembled in the U.S. for top reliability. Overseas shipping delivers unbeatable value in 35 days."}]}]}

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The most cost-effective dual-laser system with 100W Glass Tube and 38W RF Metal Tube, offering 0.001mm precision, high-speed engraving, and enhanced fume control, custom-assembled in the U.S. for top reliability. Dispatches from US warehouse in 3-5 business days for fast delivery."}]}]}

38W RF Metal Tube Hydra available upon request, please contact our sales team for customized orders. Contact Us

Safe & secure checkout

View full details

Why do so many people love OneLaser? Just let them tell you.

wrightswoodworks

risengrindworkshop

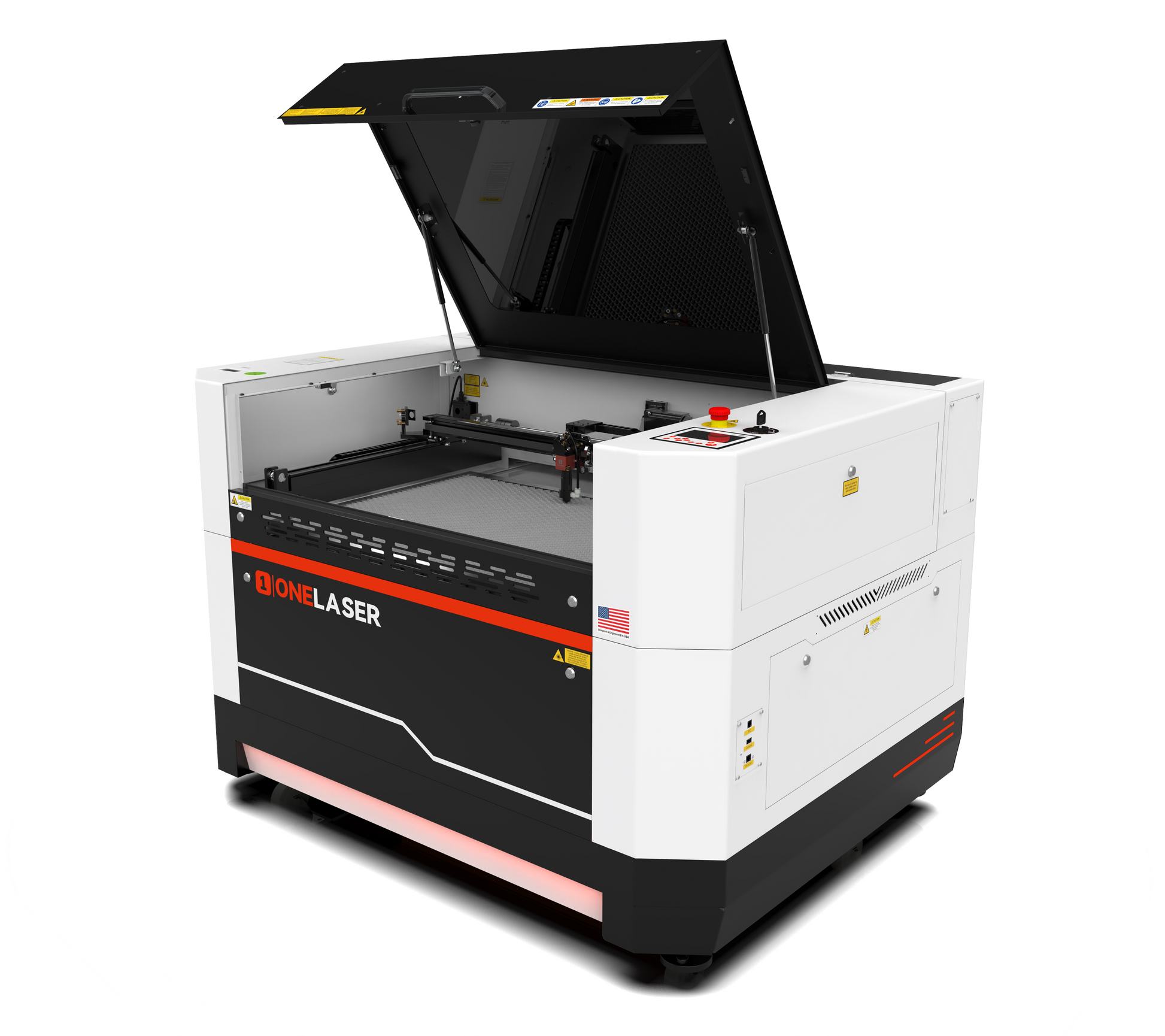

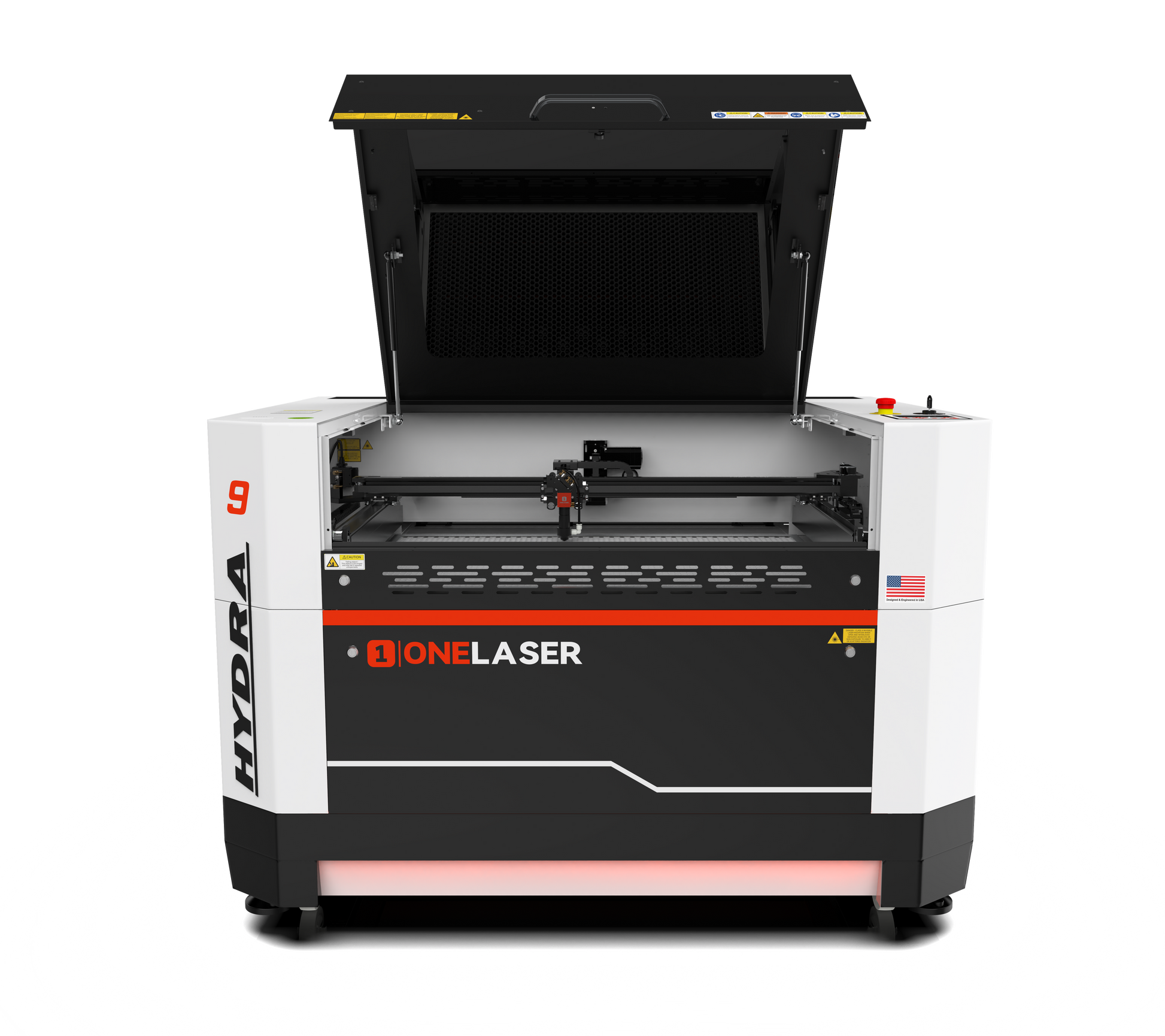

OneLaser HYDRA 9 - 100W DC/38W RF Tube Laser Engraver/Cutter

OneLaser Hydra 9 - 100W DC/38W RF Tube Laser Engraving Cutting Machine

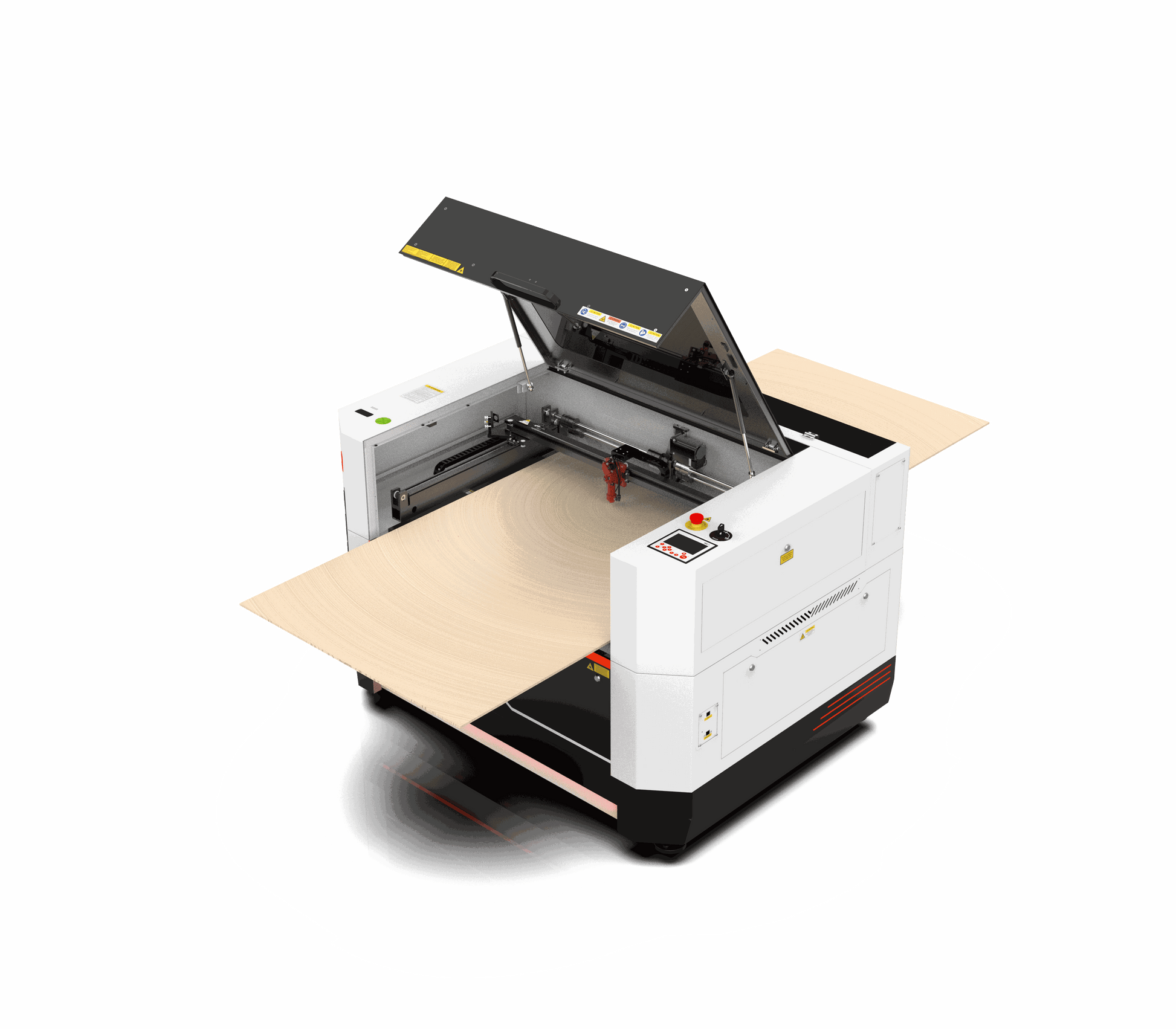

Go Big Or Go Home

Industry-leading 1.5″ pass-through door design handles oversized materials effortlessly; created without constraints.

Adjustable Airflow

Say goodbye to smoke and burn marks with adjustable airflow for cleaner, sharper cuts—maximize laser efficiency, safety, and material versatility.

QuickSwitch™

Effortlessly quick switch focus lenses with no tools needed—fast, easy, and accessible for everyone.

Right Size for Every Creativity

The Hydra 9 boasts a bed size of 35.43'' x 23.62'', making it suitable for any creative project you have in mind.

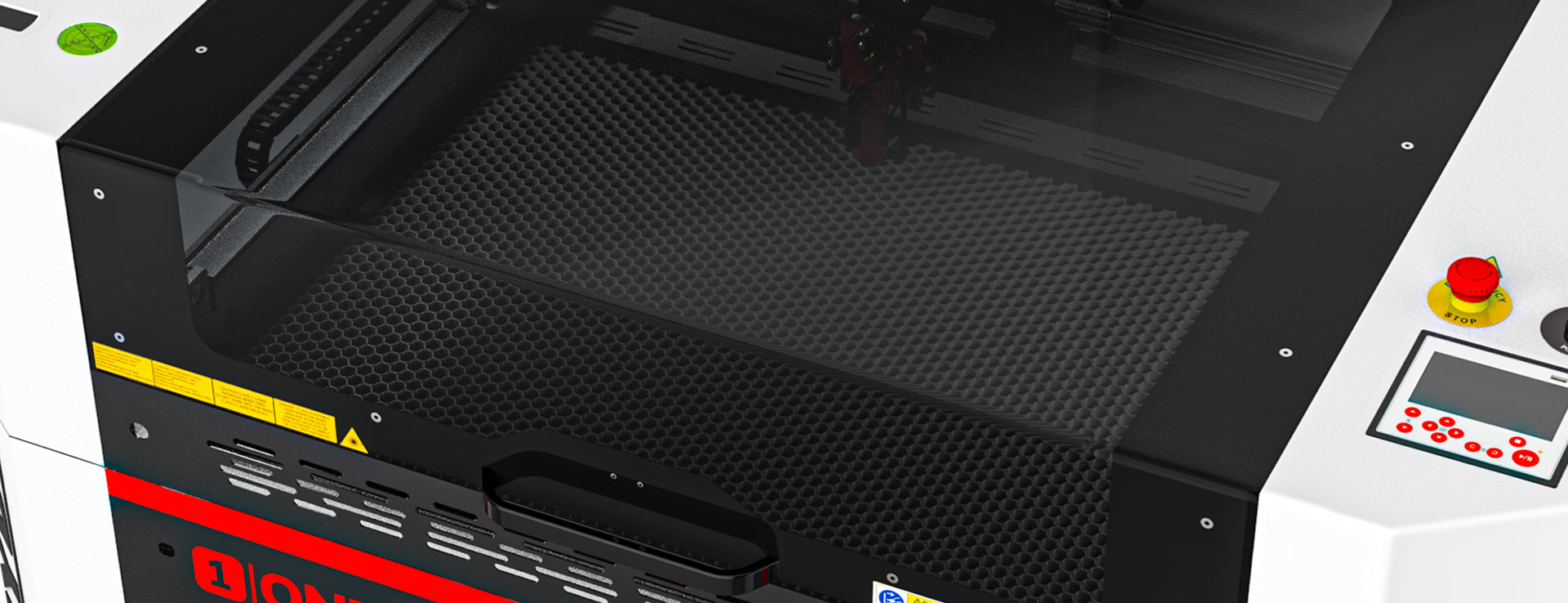

Expansive Panel Design of Hydra Laser Engraver

Panoramic Visibility

Our expansive panel design offers a seamless connection to every process of your projects.

Speed is the King

Maximize productivity with high-speed engraving—true 3G acceleration (29,430 mm/s²) and starting at 1200 mm/s on all Hydra Series. Elevate your efficiency and creativity with the OneLaser solution.

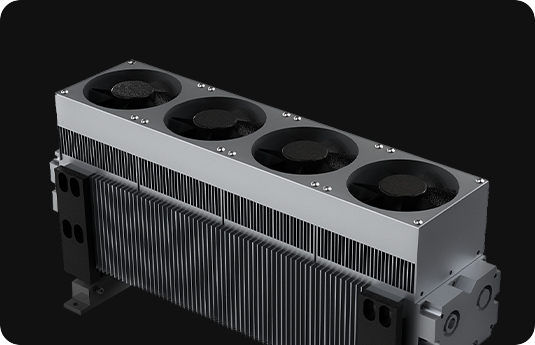

3D Photorealistic

The 3D photorealistic solution offers unmatched accuracy of 0.05mm and features a long-lasting RF metal tube with a maximum lifespan of 30,000 hours. (Up to 2000 DPI)

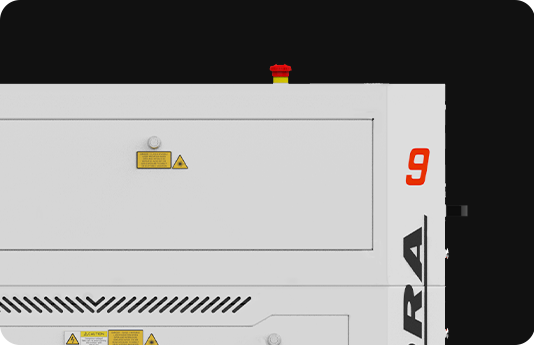

FumeGuard™

The Industrial First FumeWatch system is engineered to control harmful fumes, thereby protecting your home, children, and pets.

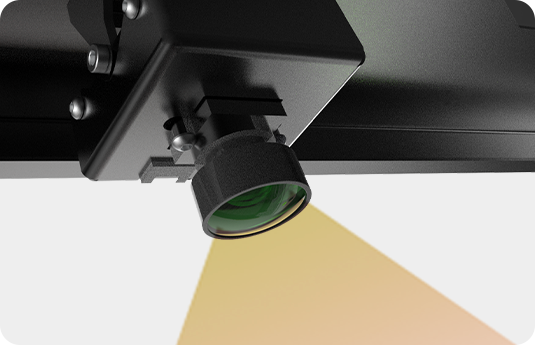

High-Precision 5M Camera with Pinpoint Alignment

See Clearly, Create Precisely

With a high-precision 5M camera capturing every detail, remotely monitor, grab contours, and position with pinpoint alignment made easy.

The Finest Carvings With Intricate Detail of 2000DPI

Precision Meets Artistry

Delivering the finest carvings with intricate detail at 2000 DPI, each cut is a masterpiece of delicate craftsmanship.

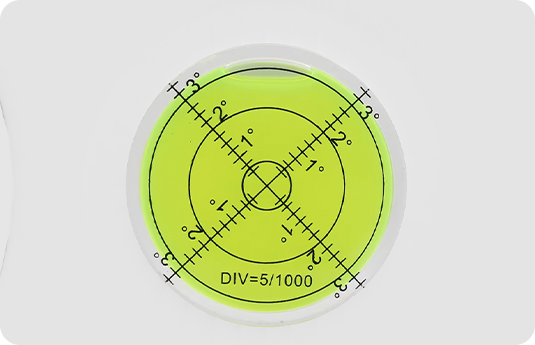

On The Level

The built-in leveling gauge keeps your laser perfectly level, streamlining setup and accuracy.

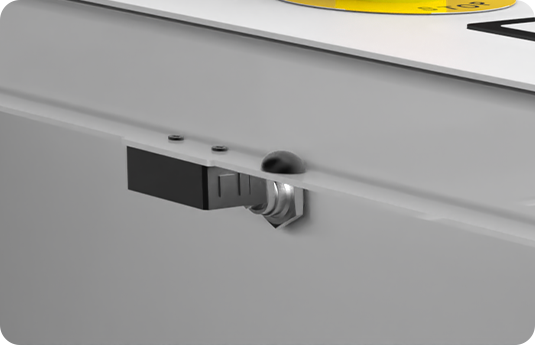

Sealed for Safety

No Covered Lids, No Operation, No Risks

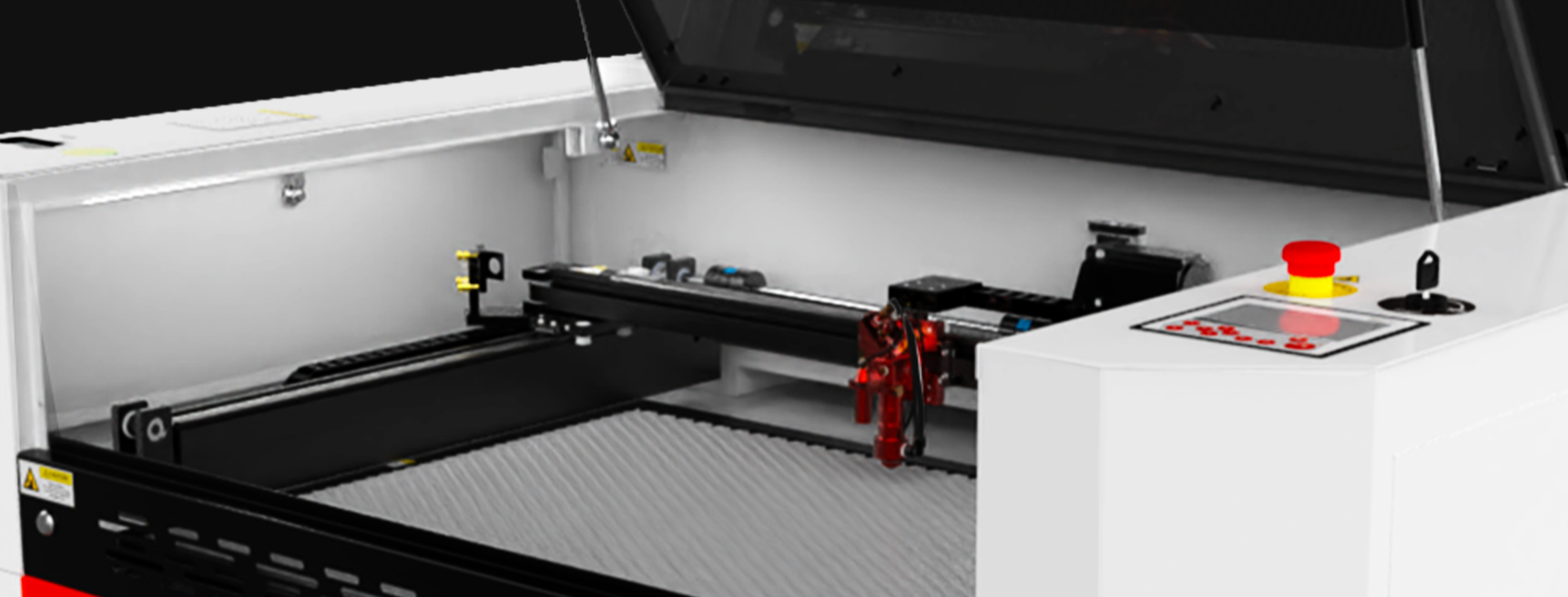

RedDot Enabled

Achieve precision with confidence every time with red laser positioning—safe, reliable, and eliminates misalignment.

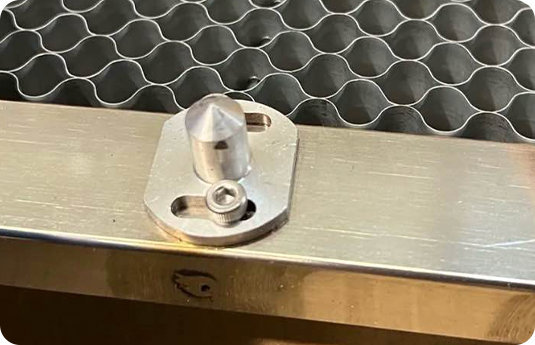

Fixed Right

Deep locking pins prevent honeycomb plate drift, ensuring consistent accuracy.

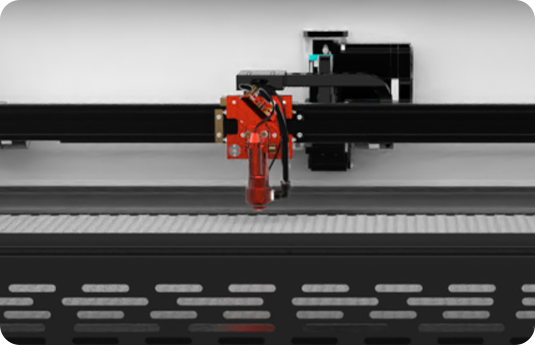

XFocus™

Our integrated sensing technology achieved industry-level autofocus with a motorized laser head, simplifying your workflow.

features

Multiple PowerSource

Modular Upgrade Hybrid System™

Adjustable Airflow

Flawless Z-Motion

Next-level Reliability

No Door Too Small

Fully Enclosed

Effortless Debris Collection

Software

Lightburn / RDWorks Compatible with Most Supported Formats: AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA

Extra Features

Achieve Precision with Confidence Every Time With Red Laser Positioning—Safe, Reliable, and Eliminates Misalignment.

When Things Heat Up, We Cool Down

Our System Alerts Instantly When Temperatures Rise, Ensuring Safety by Stopping the Laser Firing Before Any Damage Is Done. Protection, Precision, and Peace of Mind

WIFI Connectivity

From Anywhere—Seamlessly Operate, Adjust, and Monitor Equipment Remotely, Maximizing Flexibility and Efficiency with Every Move

Sealed for Safety

No Covered Lids, No Operation, No Risks

"One" Streamlined Beauty

Our All-In-One Design Has Everything Build-in, From Cooling, Airflow to Extraction, with Minimal Setup and Maximum Simplicity.

Reach out to

Expect a response within 24 hours

ONELASER Hydra Specs

Model	Hydra 7	Hydra 9	Hydra 13	Hydra 16
Workspace Area	28'' x 20''	35.43'' x 23.62''	51.18'' x 35.43''	62.99'' x 39.37''
Machine Weight	175kg	311kg	431kg	471kg

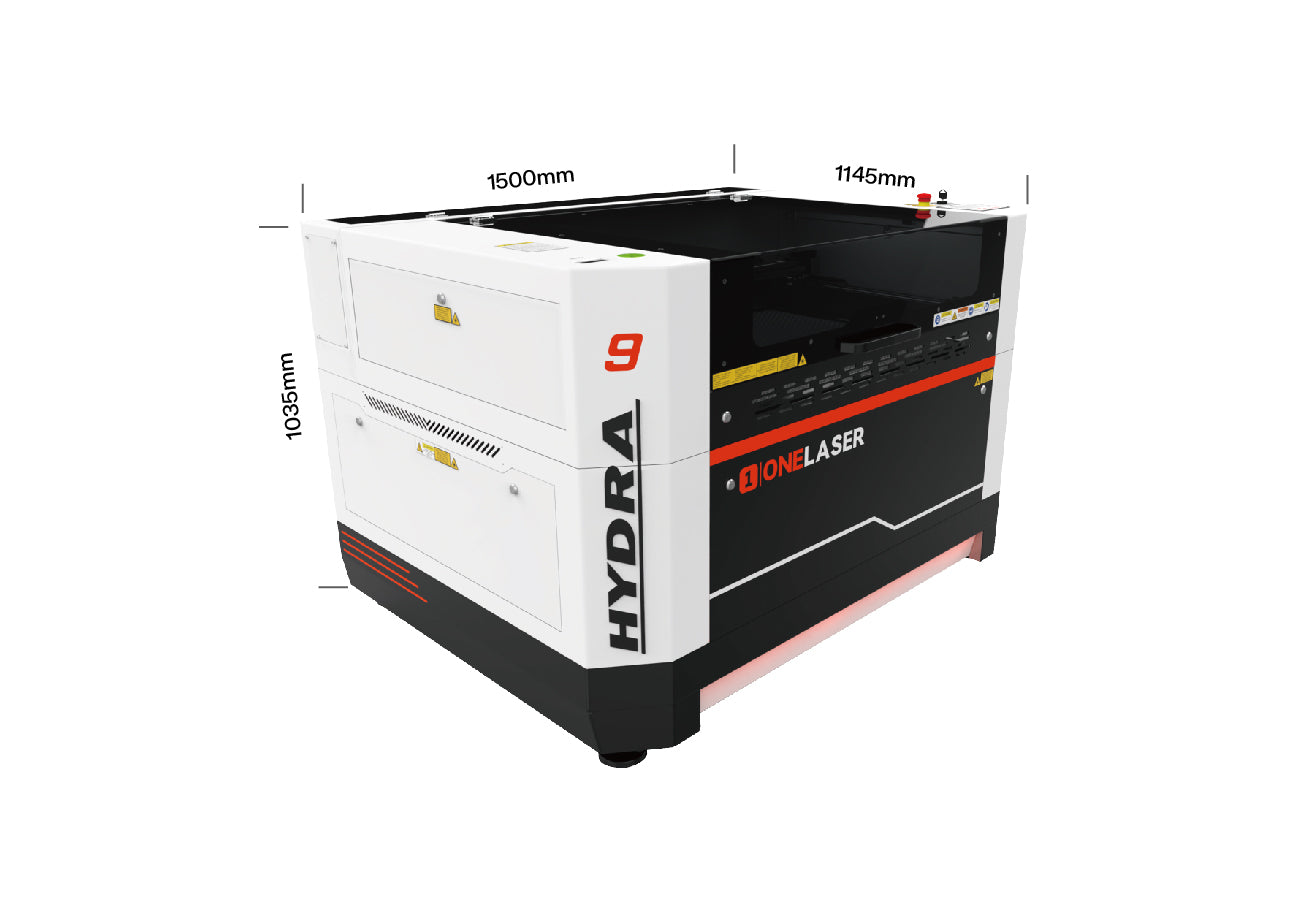

Machine Dimensions(L×W×H)	66.92”x 41.14”x 40.74”	59.05”x 45.07”x 40.74” (100W)/ 74.8”x 45.07”x 40.74”	74.80”x 56.88”x 40.74”	86.61”x 60.82”x 40.74”
Exhaust Diameter	5.91″	5.91″	7.87″	7.87″
Max Hold Weight	20kg	40kg	30kg	30kg
Laser Source(Glass Tube)	80W	100W	130W	150W
Dual Source Add-On(RF Tube)	38W/75W
Laser Dot Size	CO2(0.25mm),RF(0.07mm)
Cooling Method	Water Cool for Glass Tube, Air Cool for RF Tube
Max Acceleration	3G (29,430mm/s²)
Max Speeds	1200mm/s
Positioning Accuracy	<=0.01mm
Z-depth	9.06″	9.06″	9.06″	9.06″
3D Photorealistic Engraving(RF)	Upgradable
FumeGuard™	√	√	√	√
XFocus™	√	√	√	√
OneTouch+™ Control Panel	√	√	√	√
WiFi Connectivity	√	√	√	√
Red Dot Positioning	√	√	√	√
Open Door Protection	√	√	√	√
Air Assist Intake	√	√	√	√
Honeycomb Table	√	√	√	√
Open cover protection	√	√	√	√
Hassle-Free Alignment	√	√	√	√
High-Precision 5M Camera	√	√	√	√
Pass-Through	1.5″	1.5″	1.5″	1.5″

Hydra series User's Manual Parameter-for-38Watt-RF-Laser-Tube Material Cutter Settings

FAQ

What is the Dual-Laser System?

The Hydra Dual-Laser System is a cutting-edge dual-power-source laser platform combining a glass CO2 laser tube and an RF metal tube. The design of these two laser tubes optimizes their performance for various laser processing tasks, offering unparalleled cutting versatility and precision.

How fast can Hydra engrave?

The maximum engraving speed is an impressive 1200 mm/s, paired with 3G acceleration. This performance rivals the fastest professional-grade lasers in the industry, ensuring both speed and precision for your engraving projects.

How fast can Hydra cut?

This will depend on the model, the glass tube's wattage, and how thick the material is.

For example, if you are cutting ⅛” acrylic on the Hydra 9, you can cut this with the glass tube going about 25 mm/s, but with the Hydra 16, you will be able to cut it going 35 mm/s or faster.

Can I engrave on metal with Hydra?

You cannot engrave directly on plain, untreated metal with Hydra now. However, you can engrave on painted, anodized, or coated metals. The coating or surface treatment allows the laser to effectively mark the metal underneath, making it suitable for detailed laser engraving projects.

Can I engrave cups with Hydra?

Absolutely! The Hydra laser model comes with a connection point for a rotary attachment. Ensure the rotary device utilizes a 4-pin aviation-style plug to effortlessly engrave cylindrical objects such as cups.

Pro Tip: We highly recommend the PiBurn rotary, an excellent product from a trusted US-based company that specializes in high-quality rotary attachments.

Does the Hydra come with a built-in solenoid?

Yes, the Hydra comes with a built-in solenoid, allowing automatic control of the air assist system for improved laser cutting and engraving efficiency.

The solenoid is a crucial component in laser machines for controlling the air assist system. Its function not only enhances the efficiency and quality of cutting and engraving but also optimizes the workflow through automated control.

If your laser machine does not come equipped with a solenoid, you may need to manually operate the airflow switch, which can increase workload and lead to resource wastage.

Choosing a solenoid can significantly improve productivity and product quality, especially in scenarios involving frequent cutting and engraving tasks.

Can I plug Hydra into a regular outlet?

Yes! ONELASER Hydra Laser engraving cutting machines run on standard 110-120V outlets with at least a 15 AMP breaker.

Can Hydra fit through a regular door?

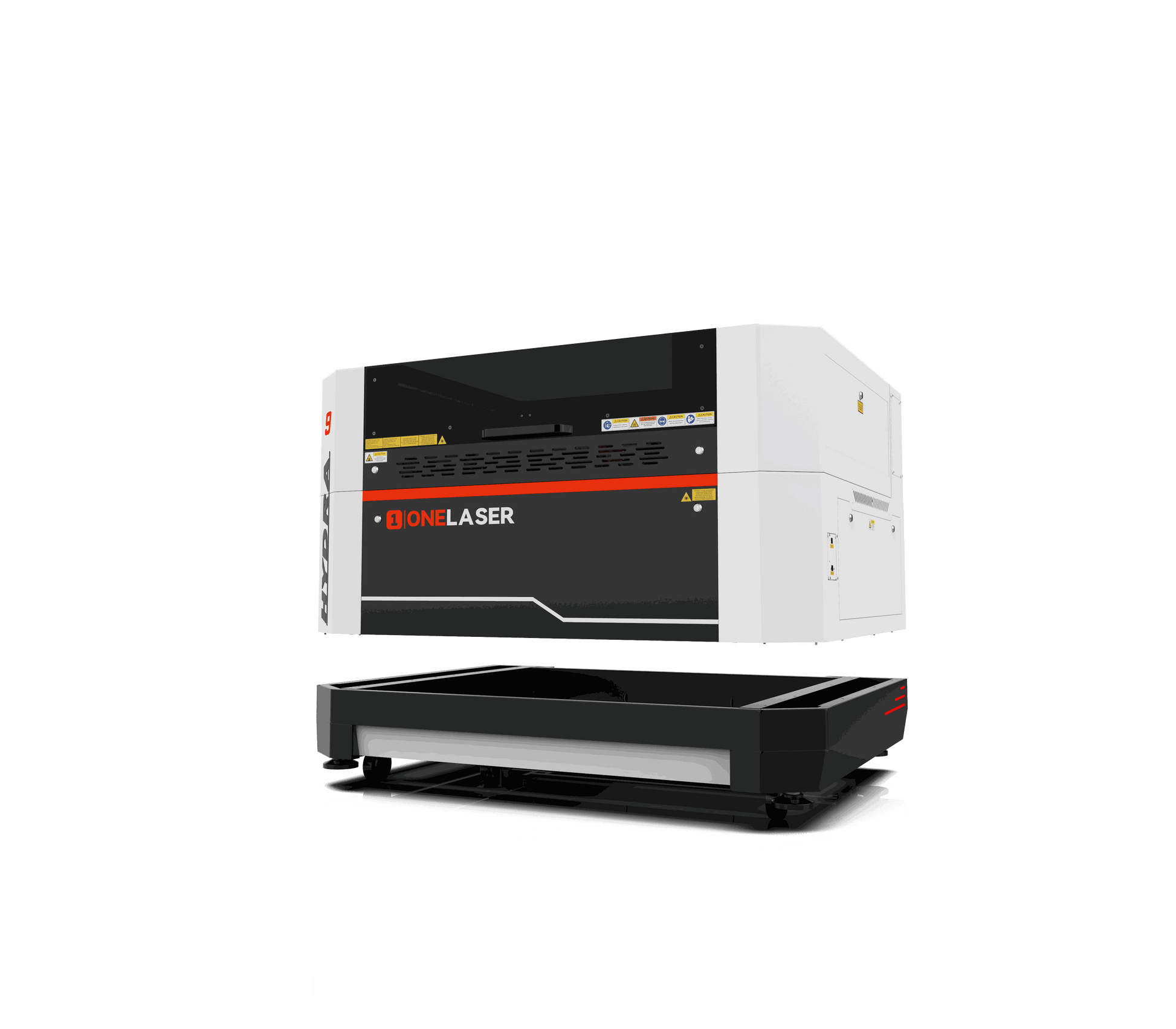

It might not fit in its assembled state, but the Hydra machine’s modular design allows you to easily disassemble any side as needed, making it simple to fit through a standard door. The entire machine consists of three layers, totaling 40.75″ in height: The top and middle layers combined measure 31.50″. The bottom layer measures 9.25″.

Glass tube is a game changer

Finally got to use my glass tube (100w) in my Hydra 9 today! Man what a difference it makes when cutting! So much faster and reliable to cut! Really stoked on my purchase with this machine

One area could use more padding

Alright so the laser is unboxed. No visible damage. It is packaged pretty well. The only suggestion I have for future orders is to pad the void as well…where my fingers are in the picture and also the door edge…the copper colored part. As I said mine looks great but this area I could see causing problems in shipping for some orders and it’s very easy to pad that area. Hope this helps.

Sakura really helped me out

Huge shout out to Sakura Huang for the major help! On the new Hydra 9 I noticed I was getting a lot of debris...
