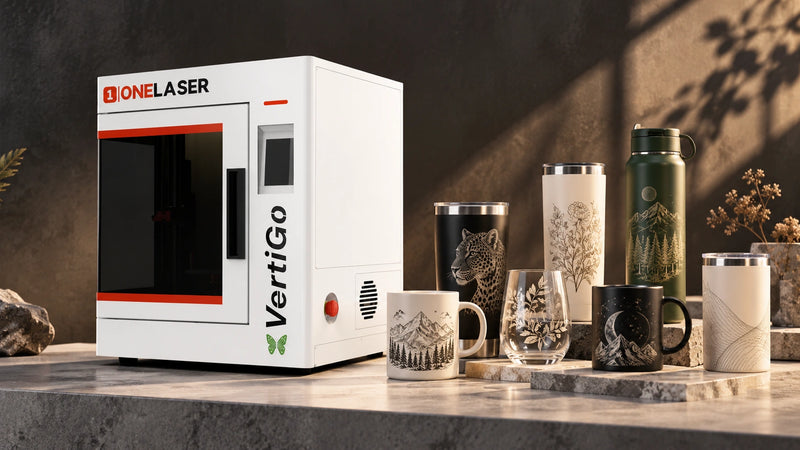

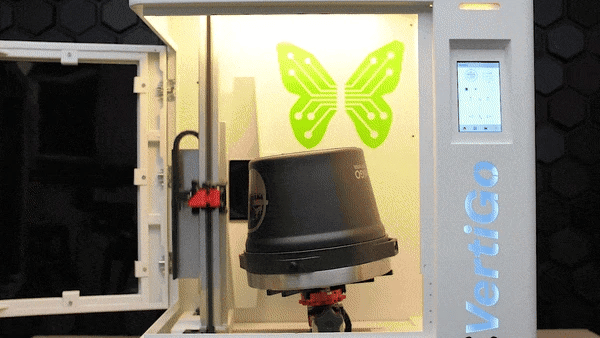

VERTIGO PRODUCT FILM
Meet VertiGo in motion.
See the vertical rotary concept, upright product handling and cylindrical production workflow in one focused introduction.
WHY RF TUBE
Why makers choose RF tube.
Cleaner detail, responsive output and an air-cooled RF metal source—built for cylindrical production.AI-generated engraving concept, not a measured precision test. Test your coating, artwork and settings first.

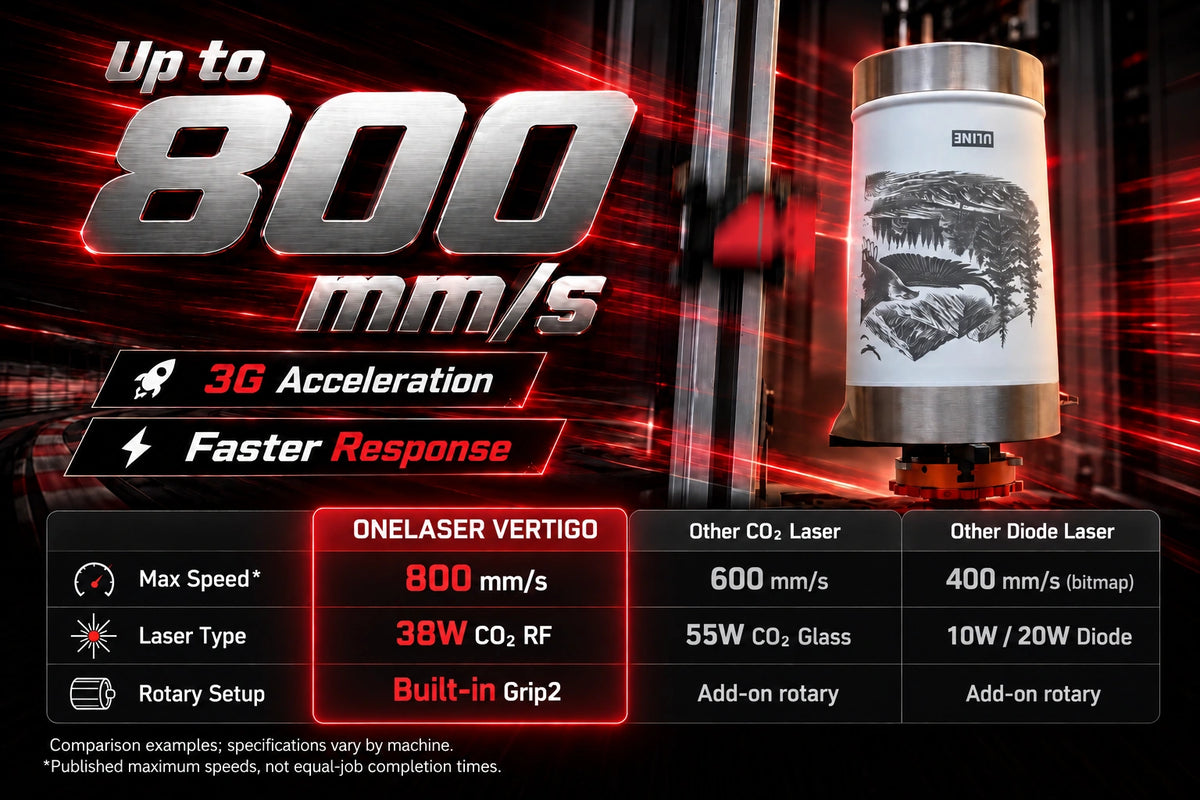

Speed artwork based on supplied VertiGo engraving photography. Motion effects are illustrative, not a performance test.

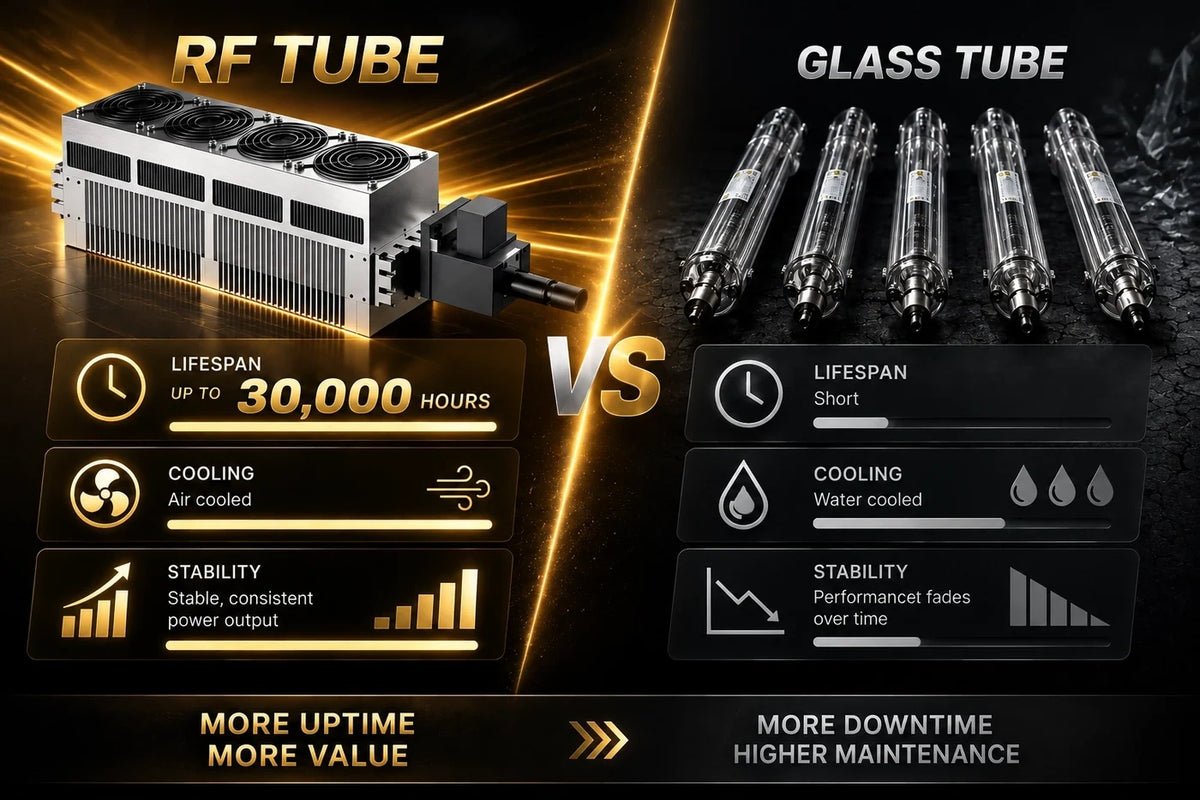

RF-source comparison artwork. The illustrated service-life rating is not a confirmed VertiGo specification.
Cleaner Detail
Faster Response
Longer Lifespan
Fine artwork, made personal.

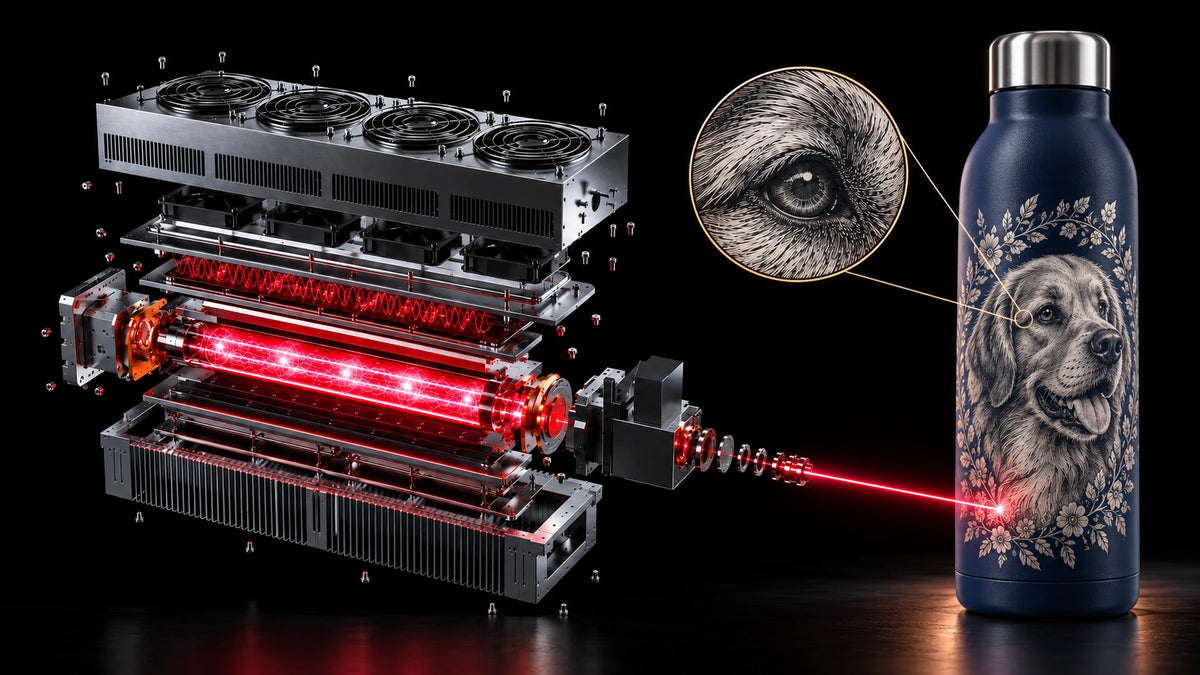

A responsive 38W RF source supports fine artwork with up to 1,000 DPI scanning precision and ≤0.01 mm positioning accuracy.
Keep fine detail moving.
Responsive RF output supports detailed artwork as VertiGo’s integrated motion system runs at up to 800 mm/s with 3G acceleration. Match the speed and power to your coating, artwork and product geometry.
Built for repeat production.
The air-cooled RF metal source is designed for repeated engraving without an external water chiller. Keep cooling airflow clear and maintain the optics as directed to support consistent performance over time.RF Precision
Next-Level Power
Powered by a 38W RF metal laser tube, VertiGo ensures consistent, high-quality engraving with a longer lifespan and lower operating costs.
Air-cooledRF source cooling
≤ 0.01 mmPositioning accuracy
2.5 inFocal lens
38WCO₂ RF source
MORE BUILT IN
3× beam expander
20 mm lens
25 mm mirrors

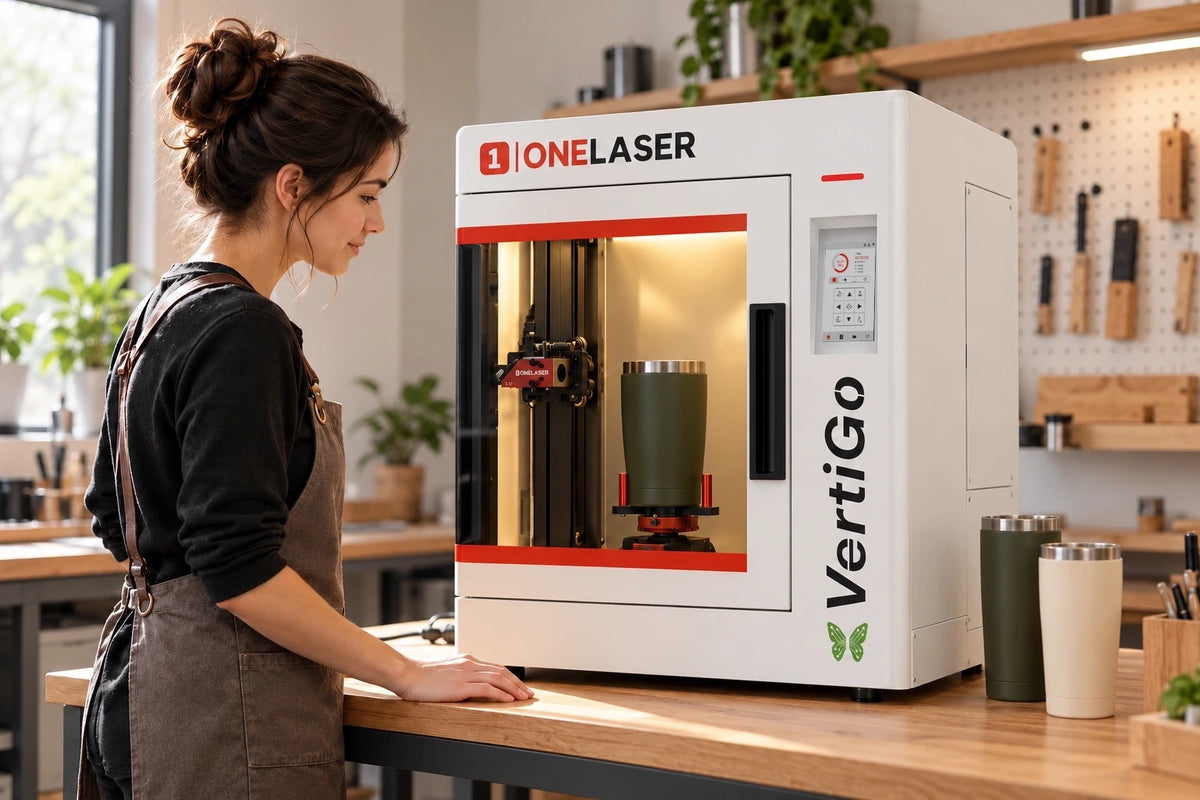

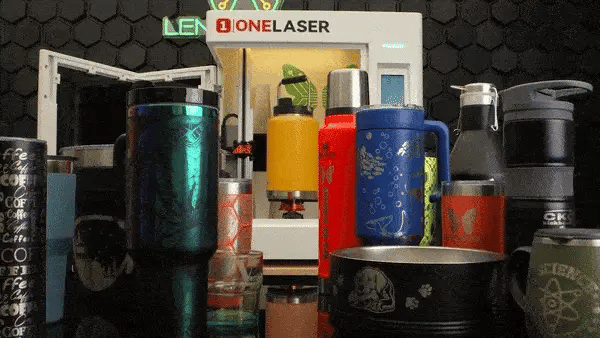

Vertical Design
Revolutionizing Cylinder Engraving
VertiGo’s vertical design transforms cylinder processing, giving your studio a competitive edge with cutting-edge production methods.
Precision Beyond Gravity
The vertical motion system ensures flawless acceleration and accuracy, maintaining smooth, consistent engraving during high-volume production.

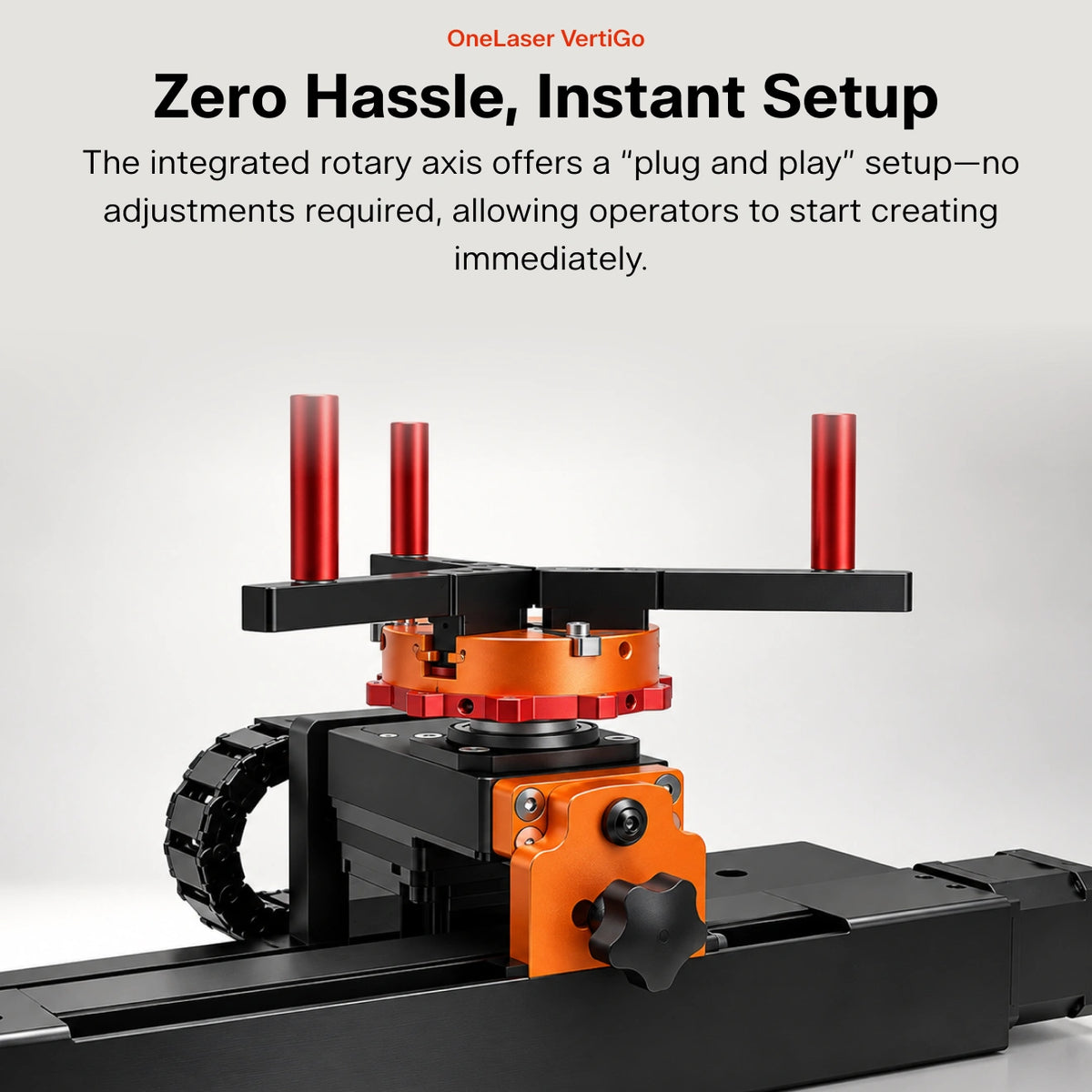

Zero Hassle, Instant Setup
The integrated rotary axis offers a “plug and play” setup—no adjustments required, allowing operators to start creating immediately.
800 mm/sMaximum engraving speed
3GMaximum acceleration
300 mmVertical travel
Grip2Integrated rotary
Smart Workflow

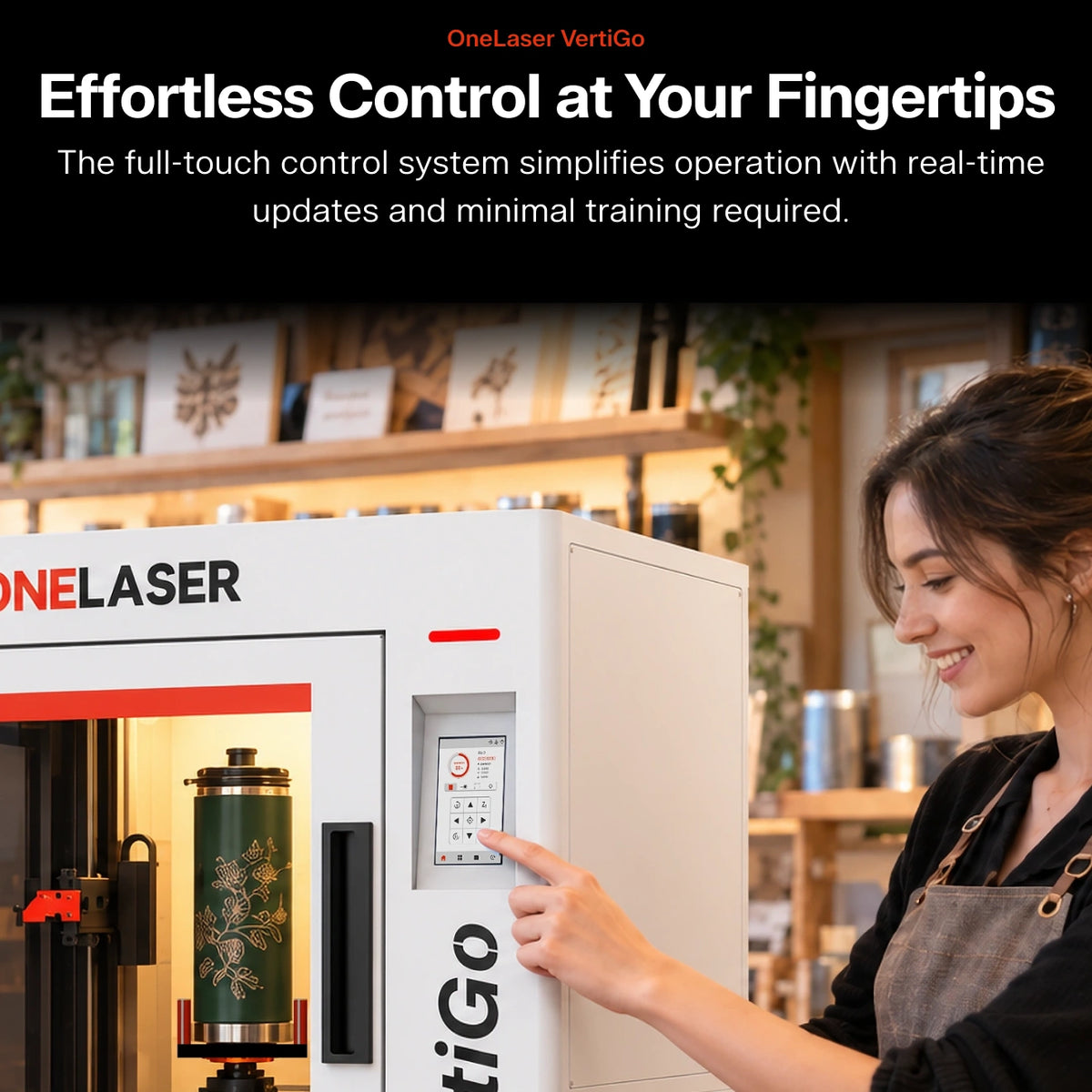

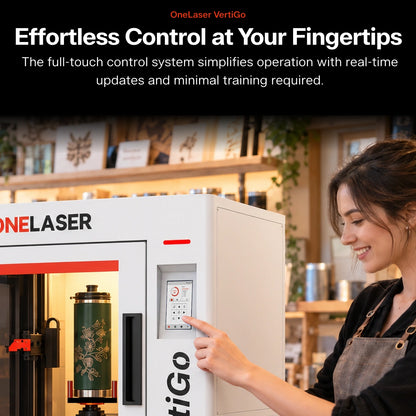

Effortless Control at Your Fingertips
The full-touch control system simplifies operation with real-time updates and minimal training required.

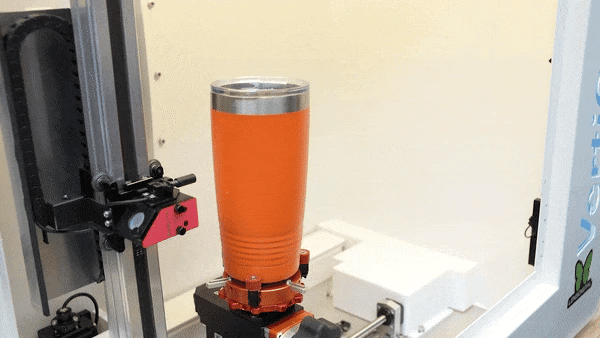

Autofocus + Red Dot. Zero Guesswork
Automatic focus finds the engraving distance, while red-light positioning helps align your design on the product. Together, they reduce manual adjustment, misalignment and waste with each batch.

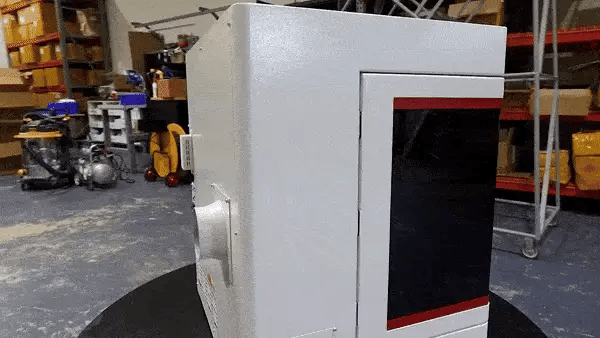

Ready in 15 Minutes. One-Touch Simplicity.
99% pre-installed, VertiGo is designed to get you up and running in just 15 minutes. Load, press and start engraving—the simple, intuitive workflow minimizes setup and training time.
Full touchMovement, settings and status
Auto focus89–230 mm diameter
Smart resumeContinue after power restoration
One-touchLoad, press and start engraving
MORE BUILT IN
Red-light positioning
Vertical-coordinate interface
LED-lit chamber

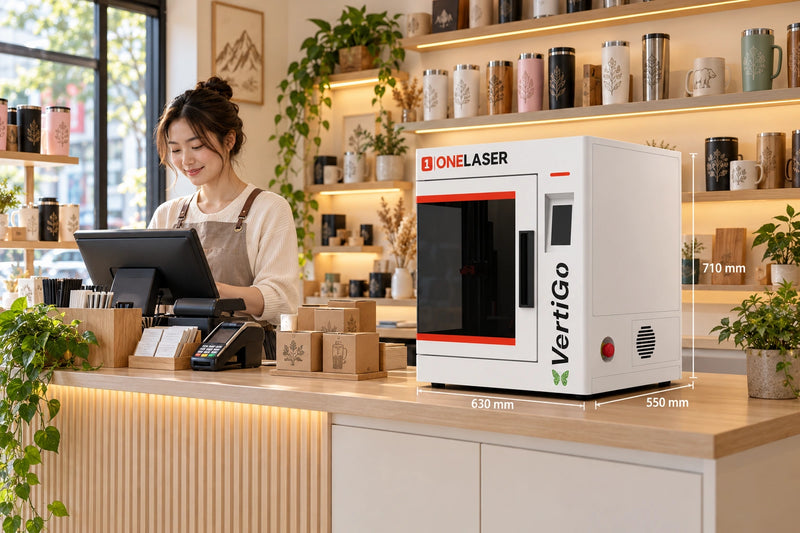

Mobile & Compact
Portability Meets Power
Built-in air cooling removes the need for external chillers, making VertiGo easier to transport and ready for mobile engraving.
Maximize Every Inch of Your Space
VertiGo’s compact size fits into small spaces, optimizing productivity even in limited work areas. The machine base measures 630 × 550 mm, with an overall height of 710 mm.
Plug & Play Productivity
99% pre-installed, VertiGo is designed to get you up and running in just 15 minutes. Fast setup minimizes downtime; confirm power, ventilation, clamping and focus before your first job.
630 × 550Machine footprint (mm)
710 mmOverall height
64 kgPlan supported transport
Air-cooledNo external water chiller
MORE BUILT IN
Markets
Exhibitions
Retail counters
Compact studios
Reliability & Safety
Built to Last
VertiGo’s electrical and mechanical design supports durability and reliability under high-volume, long-term use.
Dust-Isolated Electronics
The electronics compartment is separated from the working area to reduce dust exposure, support long-term reliability and simplify routine maintenance.

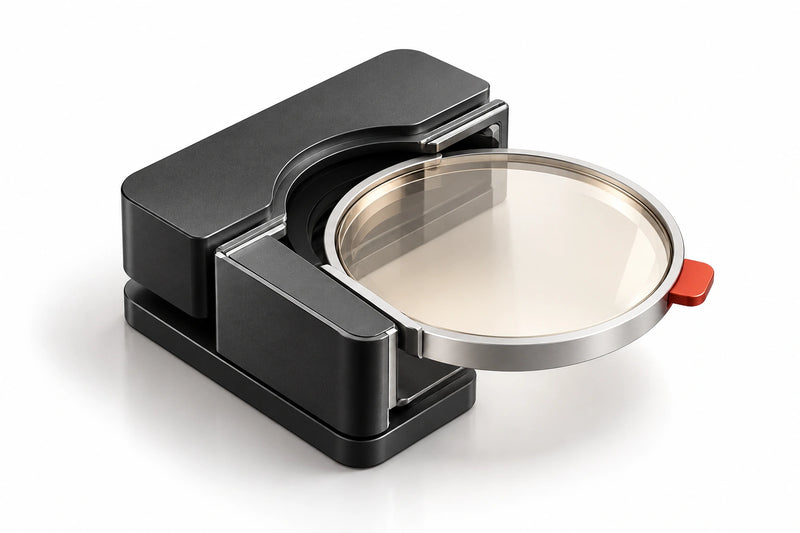

Effortless Lens Swap
Quick-release, slot-style lens access simplifies lens changes and cleaning. Use the tools and procedure specified in the operating manual, with the machine powered off.
Built-in Safety for Peace of Mind
The safety lid detection system prevents operation when the lid is open. Keep interlocks active and never leave a job unattended. Built-in smoke extraction requires suitable exhaust or filtration; extraction is not filtration.
Class 1Enclosure
LidProtection
IsolatedElectronics compartment
Built-inSmoke extraction
MORE BUILT IN
Isolated electronics
Emergency stop
Level indicator
Quick-release lens for cleaning
MAKERBOOST AI SOFTWARE
Out of the box, into creation.
MakerBoost adapts the design view to VertiGo’s vertical coordinate system and brings machine-motion controls into the software, helping you prepare and position cylindrical work in one workflow.
SOFTWARE
Your software. Your way.
Works with LightBurn, RDWorks and MakerBoost. Choose the workflow you know; supported file formats and available controls depend on the software and version you use.
PRODUCT OPPORTUNITIES
What could you sell with VertiGo?
Explore product categories designed for one-offs, repeat orders and small-batch production.
01
Drinkware
02
Events & Retail
03
Gifting
04
Batch Work
Build a focused catalog across compatible coated tumblers and bottles.

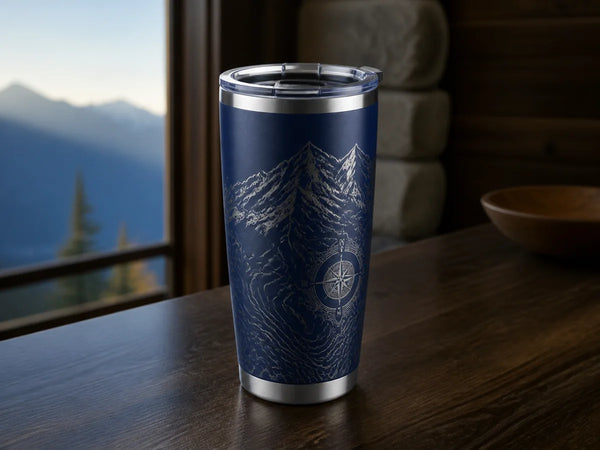

01 Outdoor Tumblers
Selling Price: $35
Net Margin: 45%
Hourly Revenue Output: Based on orders & labor time
02 Handled Tumblers
Selling Price: $55
Net Margin: 45%
Hourly Revenue Output: Based on orders & labor time
03 Coated Bottles
Selling Price: $40
Net Margin: 45%
Hourly Revenue Output: Based on orders & labor time
Material
-
Process
-
-
Setup guidance
-
Illustrative Earnings
Estimated monthly profit
-
Estimated payback
-
24-month payment
-
-
Personalize where the customer is with pre-tested products and a compact vertical workflow.
01 Live Event Batches
Selling Price: $300/10
Net Margin: 40%
Hourly Revenue Output: Based on orders & labor time
02 Corporate Drinkware
Selling Price: $450/15
Net Margin: 40%
Hourly Revenue Output: Based on orders & labor time
03 Countertop Personalization
Selling Price: $30
Net Margin: 45%
Hourly Revenue Output: Based on orders & labor time
Material
-
Process
-
-
Setup guidance
-
Illustrative Earnings
Estimated monthly profit
-
Estimated payback
-
24-month payment
-
-
Turn compatible cylindrical objects into name-led gifts and presentation-ready collections.
01 Personalized Bottles
Selling Price: $38
Net Margin: 45%
Hourly Revenue Output: Based on orders & labor time

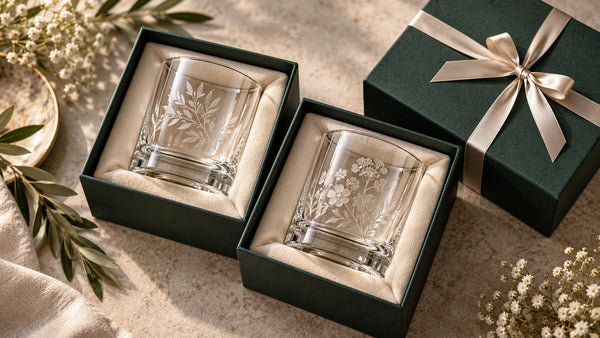

02 Engraved Glassware
Selling Price: $30
Net Margin: 40%
Hourly Revenue Output: Based on orders & labor time
03 Bottle Gifting
Selling Price: $60
Net Margin: 40%
Hourly Revenue Output: Based on orders & labor time
Material
-
Process
-
-
Setup guidance
-
Illustrative Earnings
Estimated monthly profit
-
Estimated payback
-
24-month payment
-
-
Repeat the verified setup across logo programs, short runs and a focused product range.
01 Recurring Logo Programs
Selling Price: $600/20
Net Margin: 40%
Hourly Revenue Output: Based on orders & labor time
02 Short-Run Collections
Selling Price: $360/12
Net Margin: 40%
Hourly Revenue Output: Based on orders & labor time
03 Mixed Cylindrical Range
Selling Price: $45
Net Margin: 40%
Hourly Revenue Output: Based on orders & labor time
Material
-
Process
-
-
Setup guidance
-
Illustrative Earnings
Estimated monthly profit
-
Estimated payback
-
24-month payment
-
-
MATERIALS THAT BECOME BUSINESSES
From material choice to sellable work.
Large-format projects. Repeatable batches. Fine engraving detail.

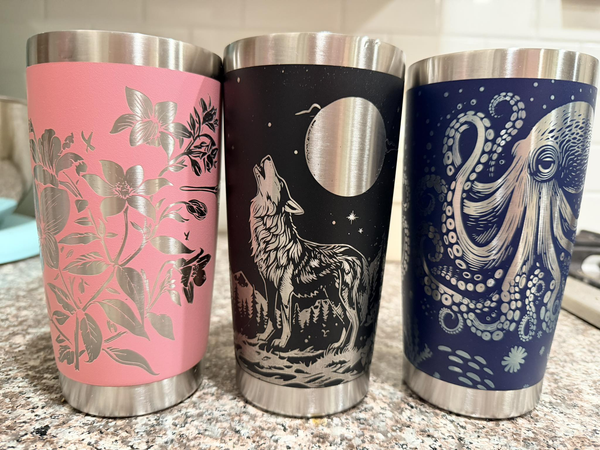

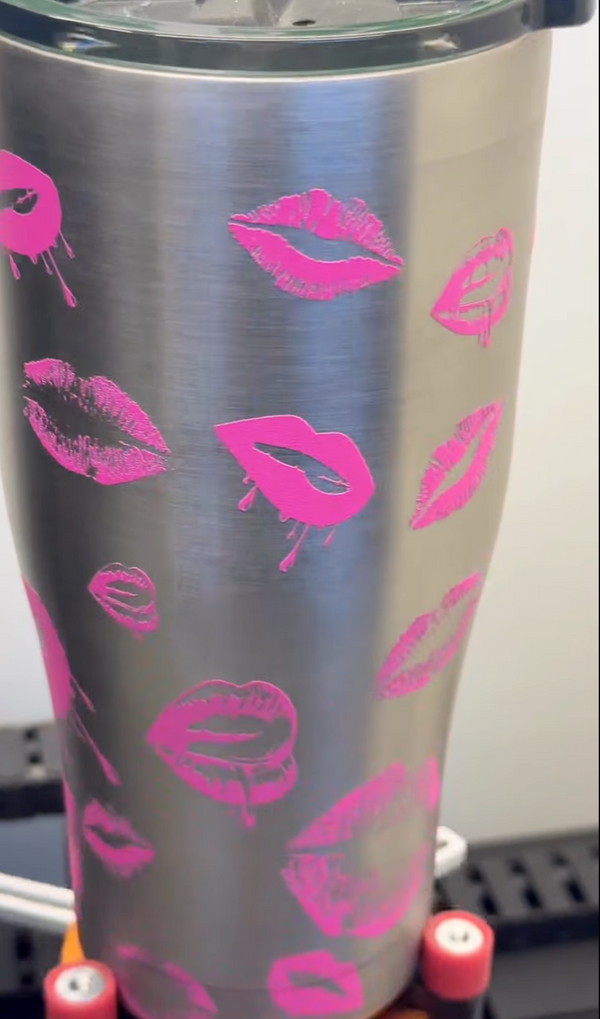

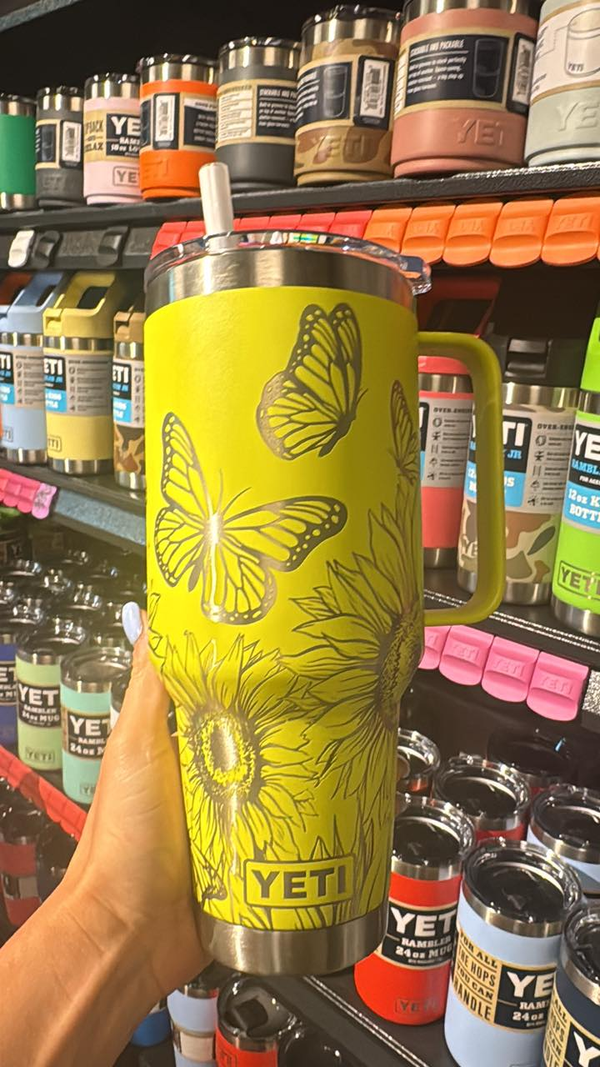

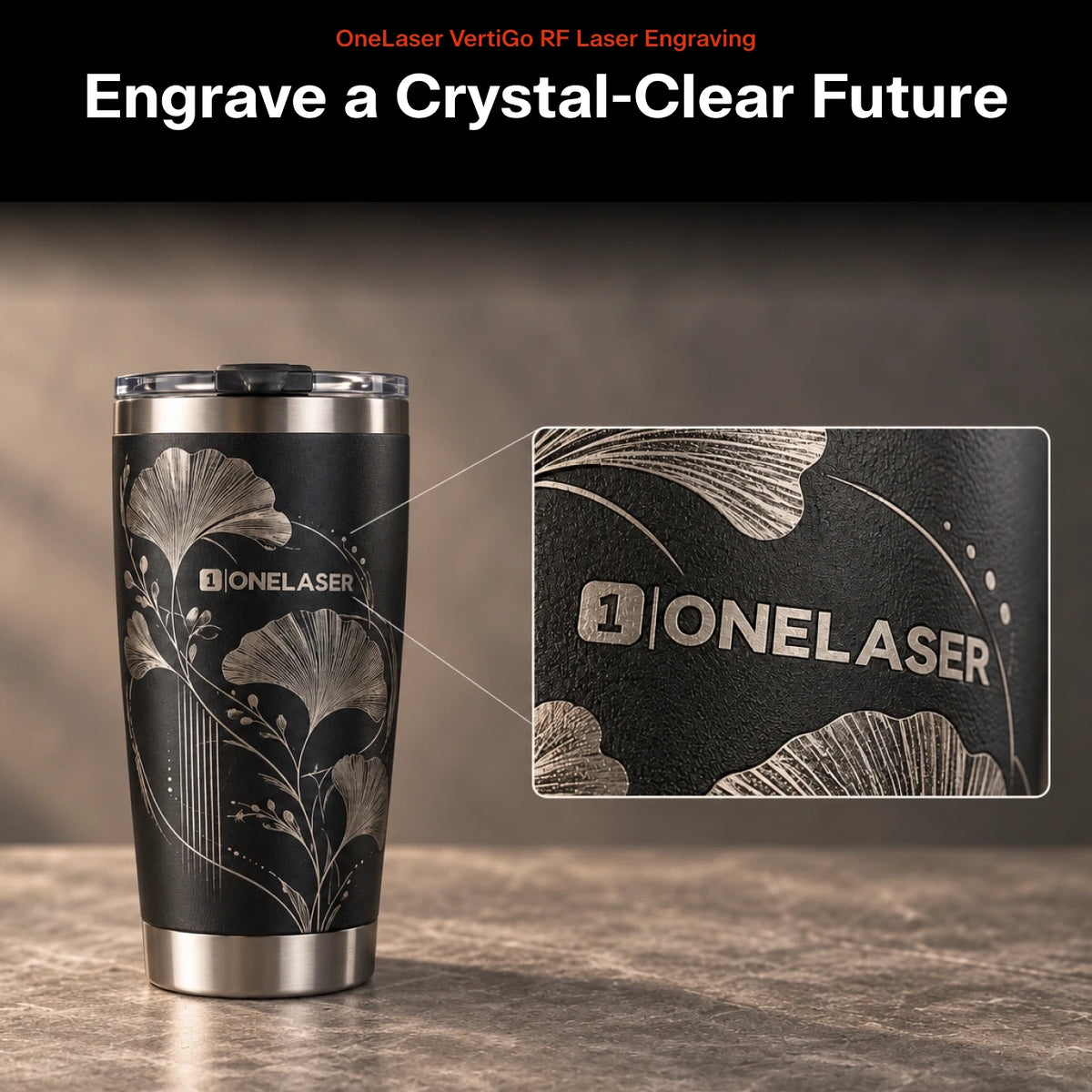

Coated Metal
Crisp detail on compatible coatings.
Create personalized tumblers, bottles and handled drinkware on powder-coated, anodized or otherwise laser-compatible surfaces.Illustrative application · Test material and settings first.
Tumblers · bottles · handled drinkware
Glass
Personalized glassware, kept upright.
Test settings for the specific glass product, then use vertical positioning for compatible cylindrical forms.Illustrative application · Test material and settings first.
Mugs · steins · bottles
Coated Mugs
A premium leather line, from caps to carry goods.
Personalize laser-compatible coated mugs with names and artwork. Confirm the coating, handle clearance and marking method with a sample first.Illustrative application · Test material and settings first.
Compatible coatings · Tested blanks

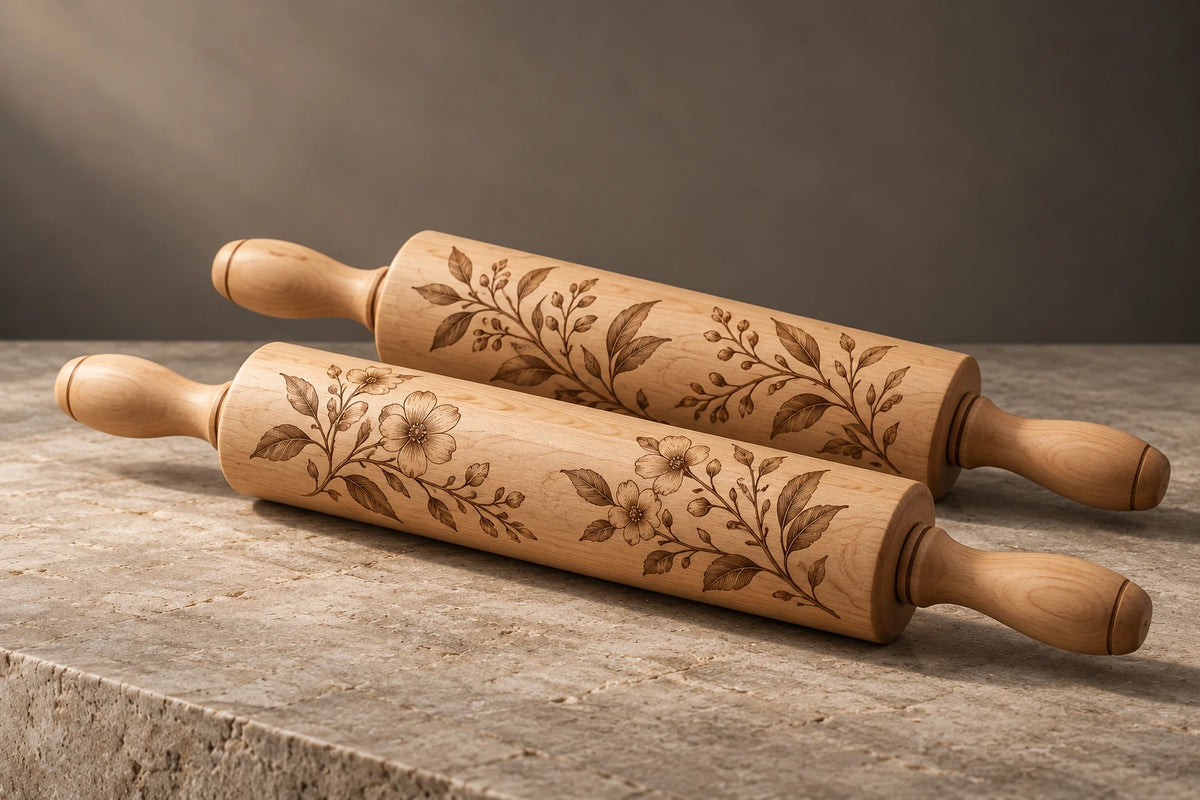

Wood Cylinders
More than drinkware.
Explore compatible cylindrical wood gifts with tested settings. Confirm diameter, length, finish and secure clamping before production.Illustrative application · Test material and settings first.
Rolling pins · cylindrical gifts
Acrylic
01
Wood
02
Leather
03
Glass & Stone
04
COMPLETE DETAILS
Specifications.
Core published specifications for the VertiGo platform. Final bundle content and electrical requirements should be confirmed at checkout.
Download BrochureMachine
Machine size
24.8 × 21.65 × 27.95 in
630 × 550 × 710 mm
Machine weight
141.1 lb
64 kg
Vertical travel
300 mm
X-axis travel
Laser & Performance
Laser source
38W CO₂ RF metal tube
Cooling
Air cooling
Maximum speed
800 mm/s
Maximum acceleration
3G
Positioning accuracy
≤0.01 mm
Maximum scanning precision
1,000 DPI
Object Range
Autofocus diameter
89–230 mm
3.5–9.05 in
Manual-focus diameter
16–230 mm
0.62–9.05 in
Control & Optics
Software
LightBurn / RDWorks / MakerBoost
Connections
USB / Ethernet / Wi-Fi
Beam expander
3×
Focal lens
2.5 in
Lens / mirror diameter
20 mm / 25 mm
Electrical & Support
Electrical input
Factory-configured 115V or 220V, 50/60Hz
Single phase; confirm the supplied version and outlet requirements with OneLaser
Power consumption
706.2W at 115V / 660.5W at 220V
Limited warranty
3-2-1 warranty
3 years: frame and structure; 2 years: electronics; 1 year: laser source.
Returns
30-Day Money-Back Guarantee
Refunds less a 3% payment processing fee and round-trip shipping costs.
Support
OneLaser knowledge base and U.S. support
Included Items
Cables
Power cable / USB cable
Exhaust
4-inch exhaust hose
Tools
2.5 mm and 4 mm hex keys
Rotary jaws
Short and extended chuck jaws
Other
USB drive / labels / stickers
Confirm final bundle contents at checkout

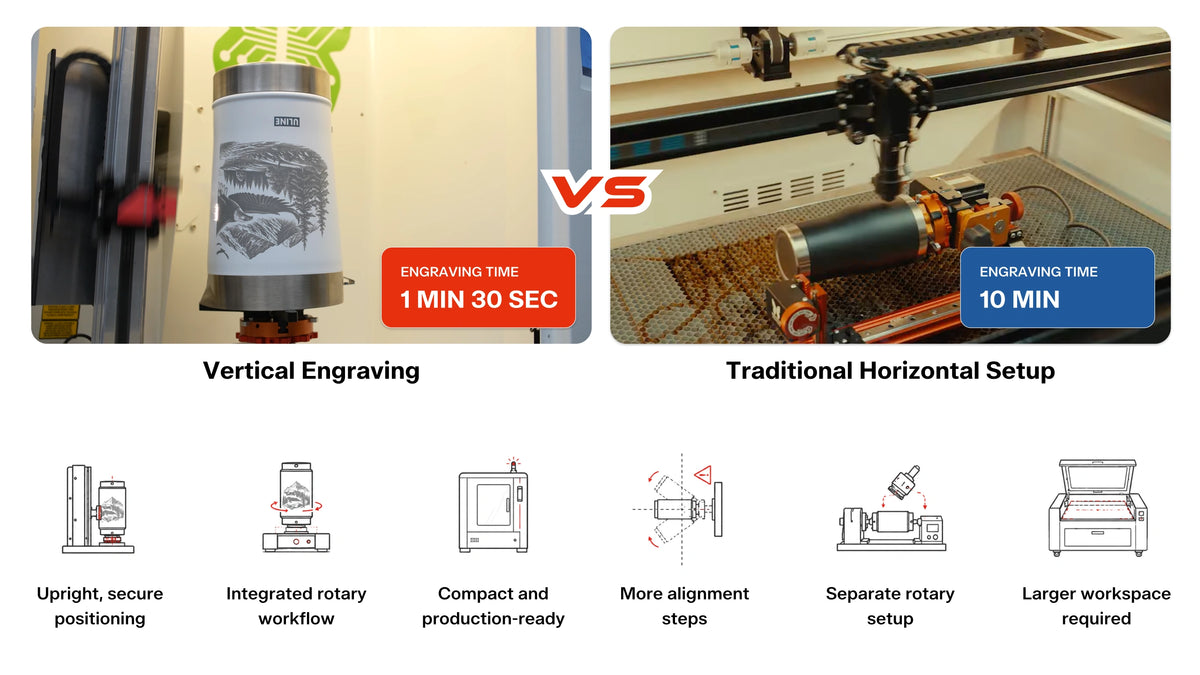

WORKFLOW COMPARISON
Vertical by design, not by accessory.
Compare a purpose-built vertical system with a traditional horizontal rotary setup.
| VertiGo vertical workflow | Traditional horizontal setup | |
|---|---|---|
| Product position | Upright and gravity-assisted | Horizontal rotary inside a flat-bed machine |
| Rotary | Integrated and factory-aligned | Separate setup and alignment |
| Focus | Automatic for 89–230 mm diameter | Depends on the machine and rotary workflow |
| Footprint | 630 × 550 mm machine base | Flat-bed laser plus rotary clearance |
| Primary job | Cylindrical products | Mixed flat and cylindrical work |
REVIEWS & REAL-WORLD APPLICATIONS
See VertiGo in creators' hands.
Explore creator reviews, owner unboxing, full-wrap artwork, glass engraving and a 20-tumbler production challenge. Each video identifies its creator and purpose.
CREATOR REVIEW
If You Sell Tumblers, Buy This Laser
Make or Break Shop
OWNER UNBOXING
Unboxing the VertiGo
Maker Studio
APPLICATION DEMO
Perfect Full-Wrap Engraving on Tapered Tumblers
LensDigital
BATCH ENGRAVING DEMO
20 Tumblers: The APA Show Production Challenge
LensDigital
GLASS APPLICATION DEMO
Glass Engraving on VertiGo
LensDigital
APPLICATION WALKTHROUGH
3 Things a Vertical Laser Can Do
LensDigital
NOT READY TO CHECK OUT?
Choose the next step that helps you decide.
Join the product community, speak with an engineer, or request the information you need to evaluate VertiGo on your own time.
Join the VertiGo community
Follow owner conversations, application ideas and product updates.
Talk to an engineer
Get a free 30-minute consultation focused on your products, workflow and setup.
Get VertiGo information
Choose the complete specifications, an itemized quote or help evaluating your materials.
TRADE UP TO VertiGo
Have an old laser? Explore a VertiGo upgrade.
Tell OneLaser what you own today and confirm current eligibility and offers for your chosen VertiGo configuration.
01
30-Day Money-Back Guarantee.
Take a full 30 days to get to know your VertiGo. If it's not the right fit for you, just reach out — we'll help you send it back, no hard feelings, no hassle. We'd rather you find the perfect machine than keep one that isn't. (Refunds are issued in full, less a 3% payment processing fee and round-trip shipping costs.)
02
We built it to last. We back it to prove it.
Every VertiGo is backed by our 3-2-1 warranty: three years on the frame and structure, two years on electronics, and one year on the laser source — among the strongest coverage in its class. It's not fine print; it's what confidence in our own build quality looks like.
03
One Support. Real engineers. Real experience.
When you call OneLaser, you talk to a U.S.-based engineer with more than five years of laser-industry experience on average—people who've built, tuned and repaired these machines, not script readers. That experience means faster answers, first-call solutions and real support. You're not just buying a machine; you're buying the team behind it.
BUYING QUESTIONS
Good answers before you commit.
VertiGo includes a 3-2-1 warranty: 3 years on the frame and structure, 2 years on electronics and 1 year on the laser source. The 30-Day Money-Back Guarantee provides refunds less a 3% payment processing fee and round-trip shipping costs.
No. VertiGo's Grip2 rotary is integrated and factory-aligned for compatible cylindrical products.
Autofocus covers 89–230 mm; manual focus covers 16–230 mm. Confirm object height, unusual shapes, clamping and handle clearance with OneLaser before ordering.
No. The 38W RF metal tube uses air cooling.
The published specification lists LightBurn, RDWorks and MakerBoost, with USB, Ethernet and Wi-Fi connectivity.
VertiGo is a CO₂ RF system. Use powder-coated, anodized, coated or otherwise laser-compatible surfaces; confirm the material and marking method before production.
Availability and preorder options are handled on OneLaser’s official product page. Confirm the current ordering status, freight and delivery estimate with sales before payment; delivery estimates are not guarantees.
The listed bundle includes a power cable, USB cable, 4-inch exhaust hose, 2.5 mm and 4 mm hex keys, short and extended chuck jaws, USB drive, labels and stickers. Confirm final contents with OneLaser before ordering.
Confirm the factory-configured 115V or 220V version and suitable single-phase outlet with OneLaser. Plan ventilation, a stable support surface, delivery access and safe handling for the 64 kg machine. Follow the installation and operating instructions.
Test the exact coating, glass composition or wood finish and confirm dimensions and clamping. Ceramic glazes and marking methods vary: ask OneLaser to confirm suitable blanks rather than assuming every glazed mug is compatible.
