What is a CO2 Glass Laser Tube?

It is a laser source that generates a CO₂ laser beam for cutting and engraving, known for its strong power output and cost-effective performance.

What power options are available?

This CO2 Glass Laser Tube comes in 100W, 130W, and 150W models, allowing you to choose based on your cutting and engraving needs.

Does it require a cooling system?

Yes, it requires water cooling (15–25°C) to maintain stable operation and extend the tube’s lifespan.

How long does the tube last?

With proper cooling and usage, it offers long working hours and consistent performance, reducing the need for frequent replacements.

Is it suitable for continuous production?

Yes, it’s designed for long production runs with stable output and minimal performance drop.

Is installation complicated?

No, the standardized design allows quick installation and easy replacement with minimal downtime.

What materials can it process?

It works best on non-metal materials such as wood, acrylic, leather, fabric, rubber, and paper.

Which machines is it compatible with?

It is compatible with OneLaser Hydra Series Dual Laser System and Hydra Gen2 Dual Laser System.

1 10

Join the Community in Industry

100% USA Engineers With Lifetime Support

Complimentary Business Consultation

3-Year Warranty:Unmatched Reliability

Revolutionary Performance at Remarkable Price!

Designed, Engineered, and Perfected in the USA!

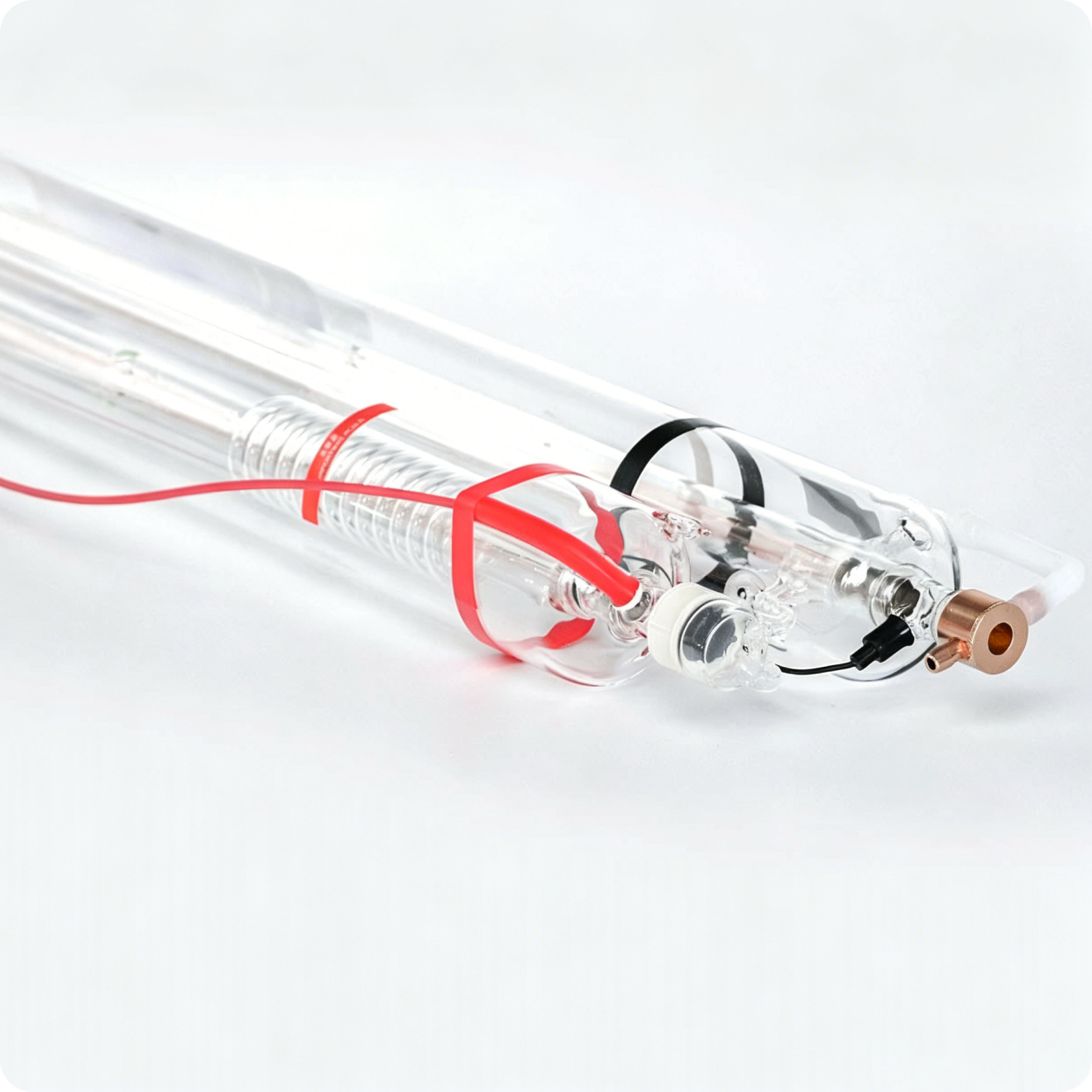

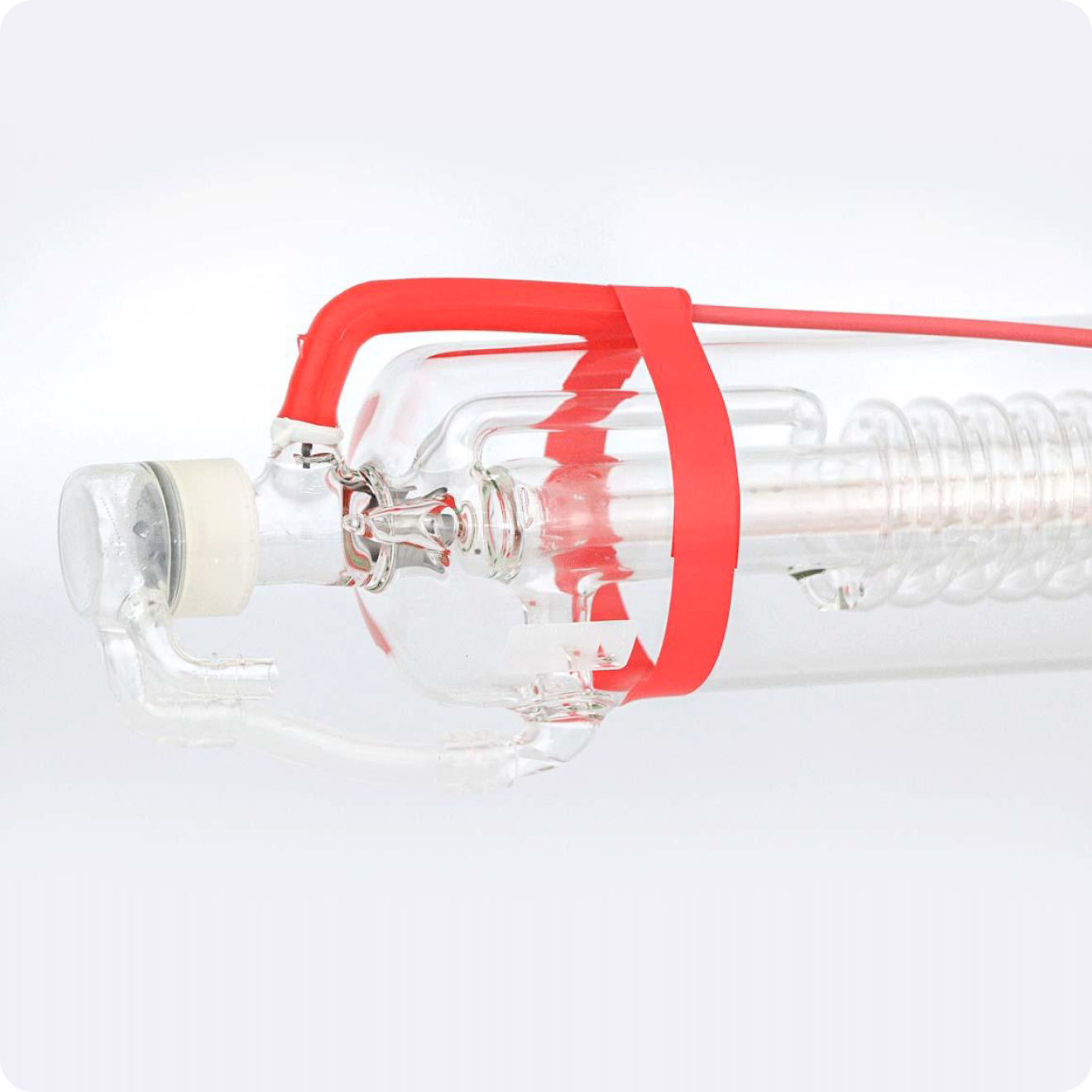

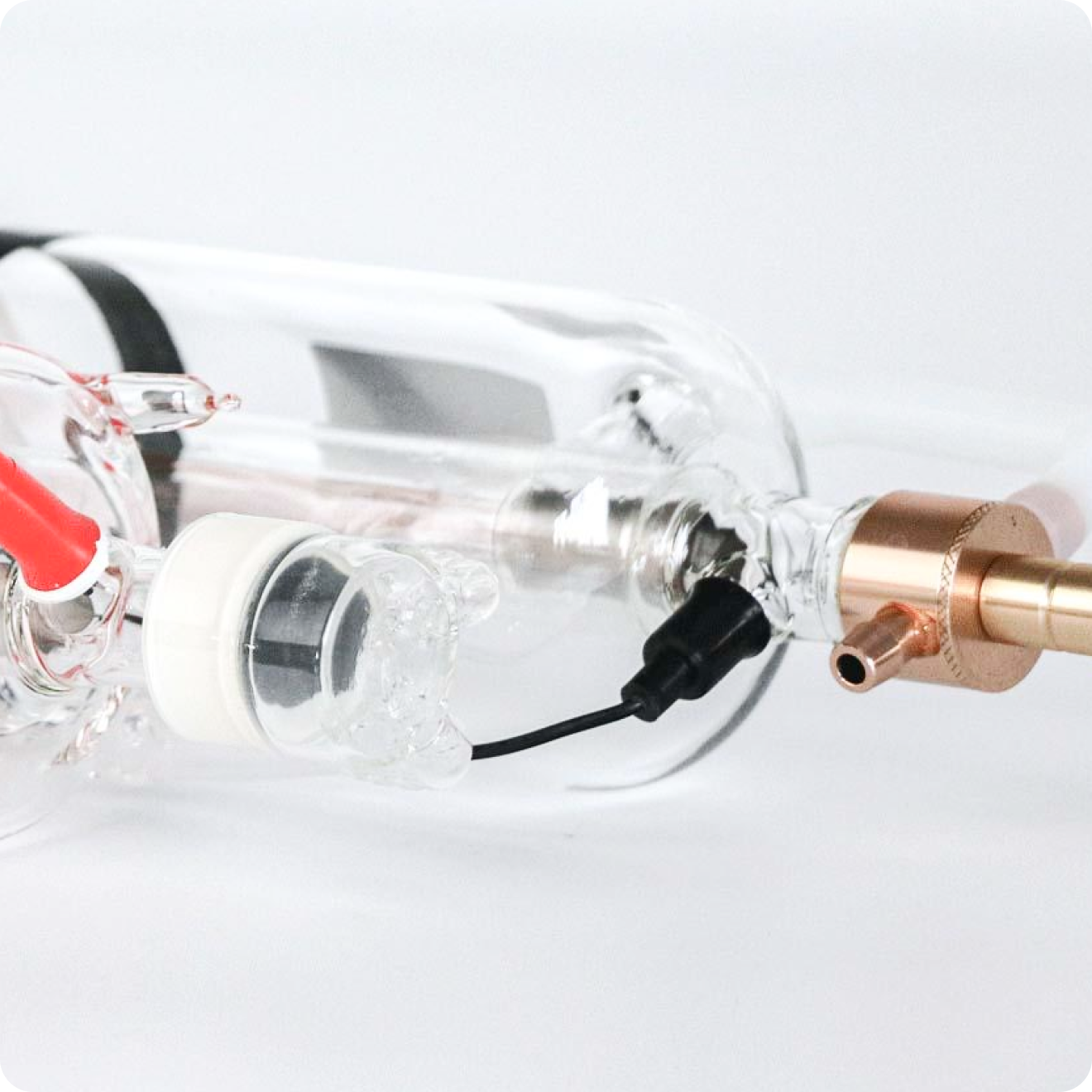

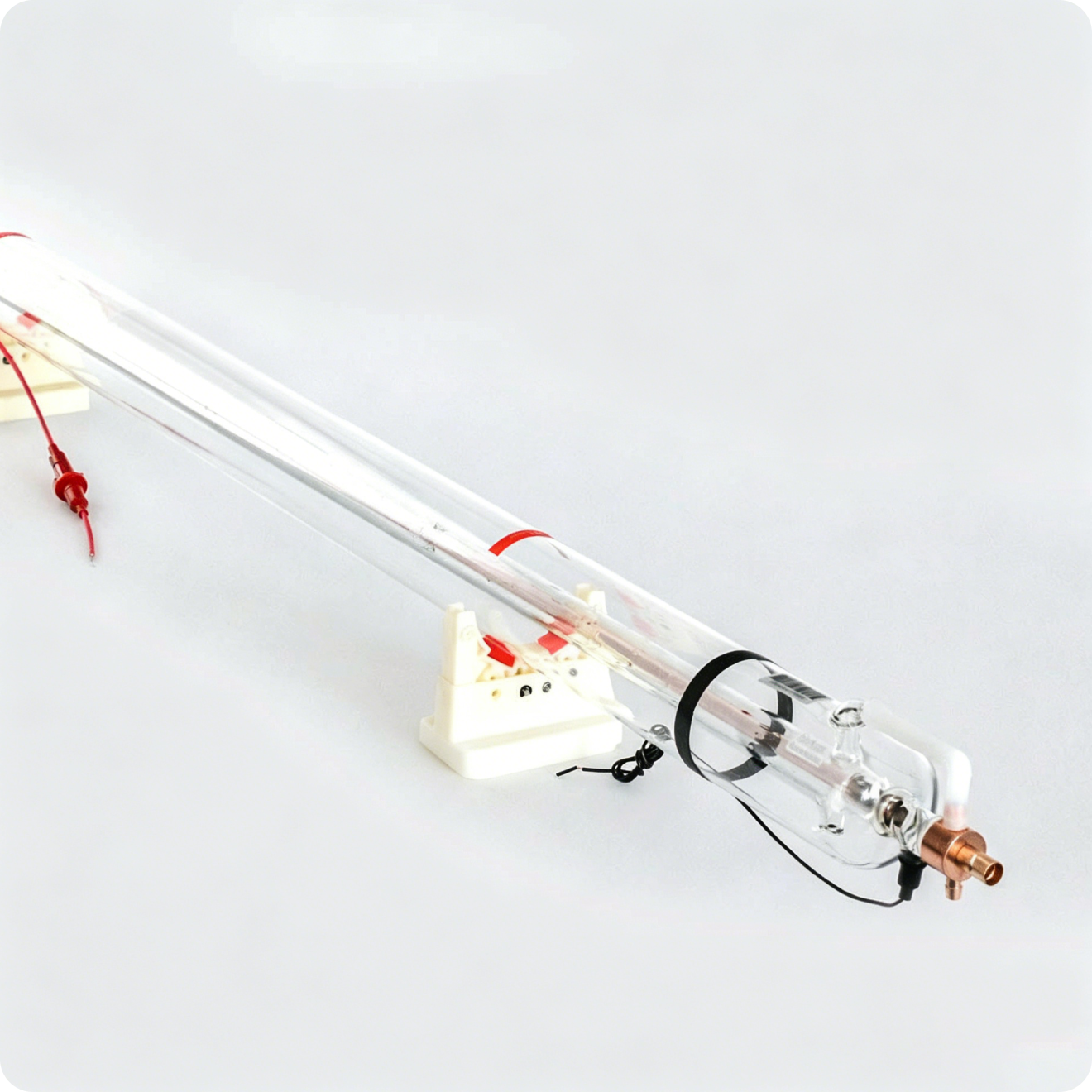

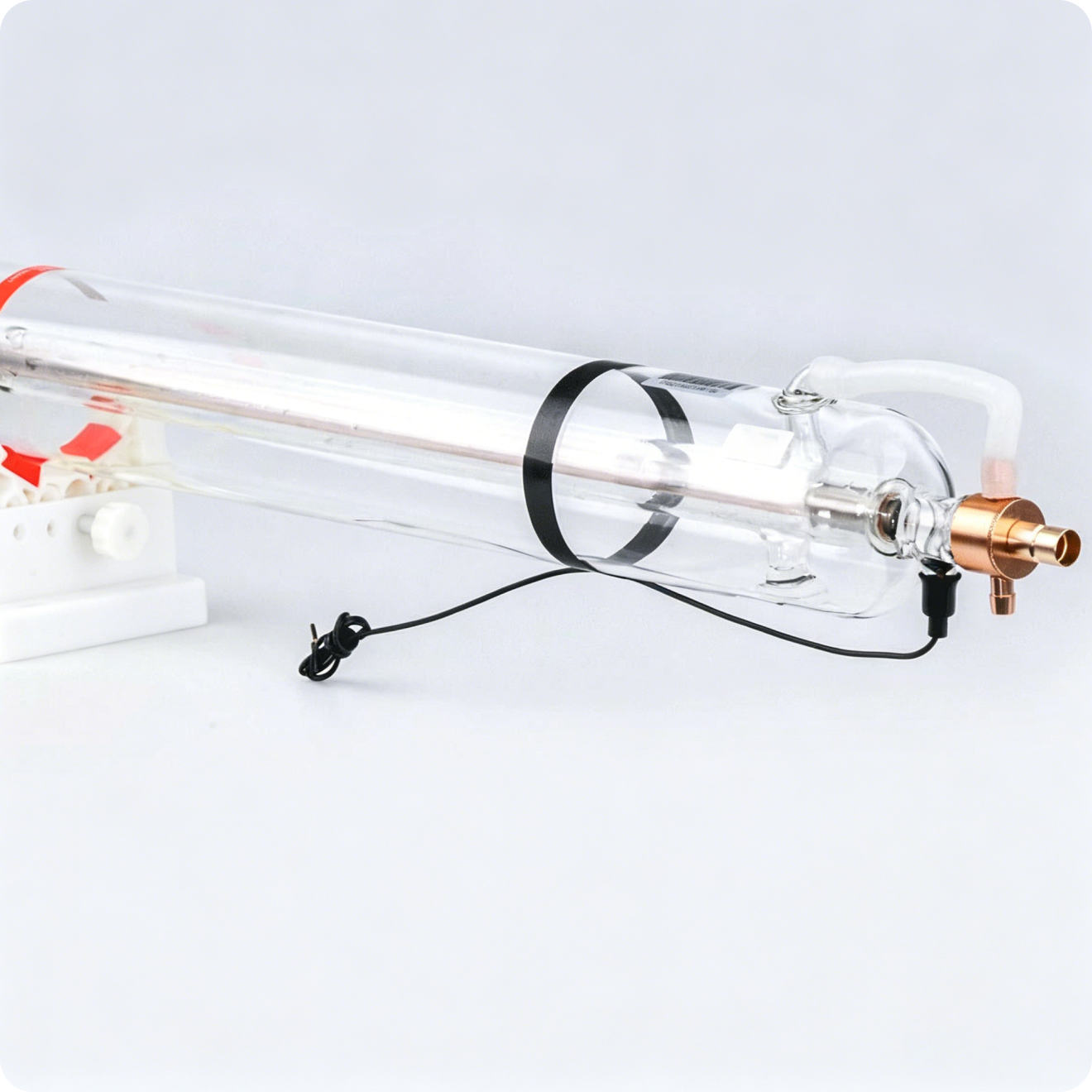

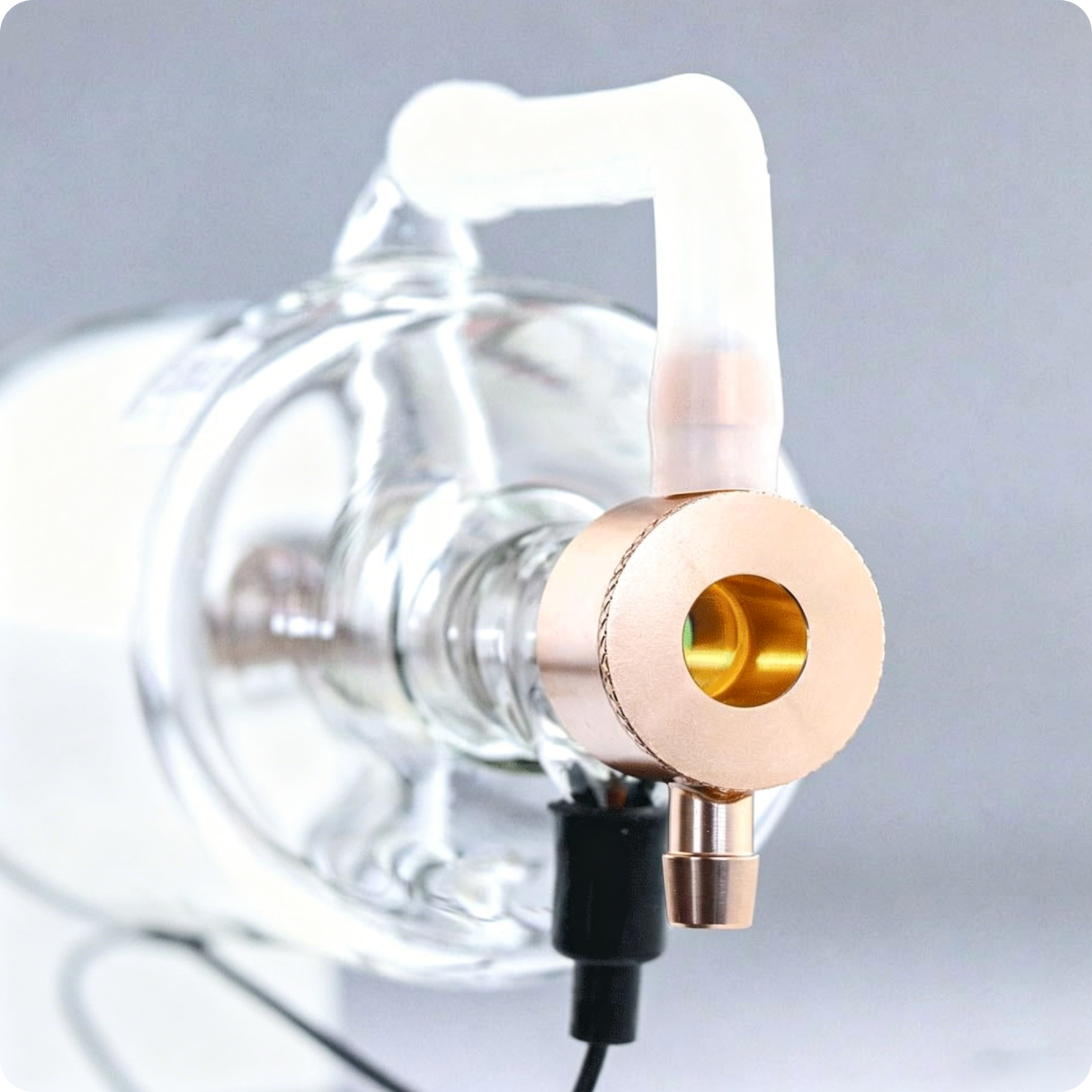

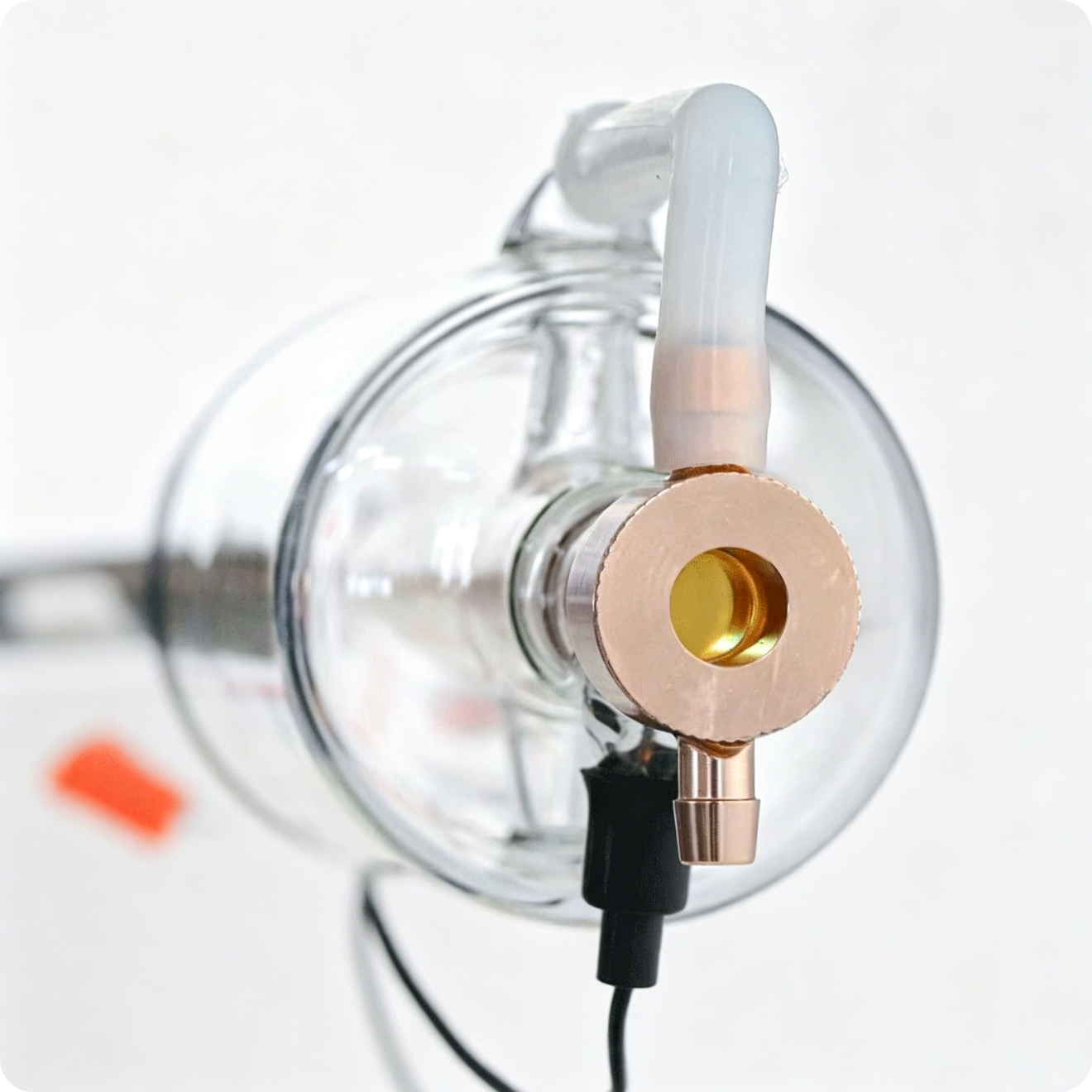

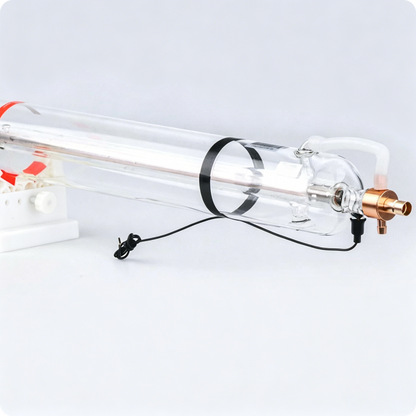

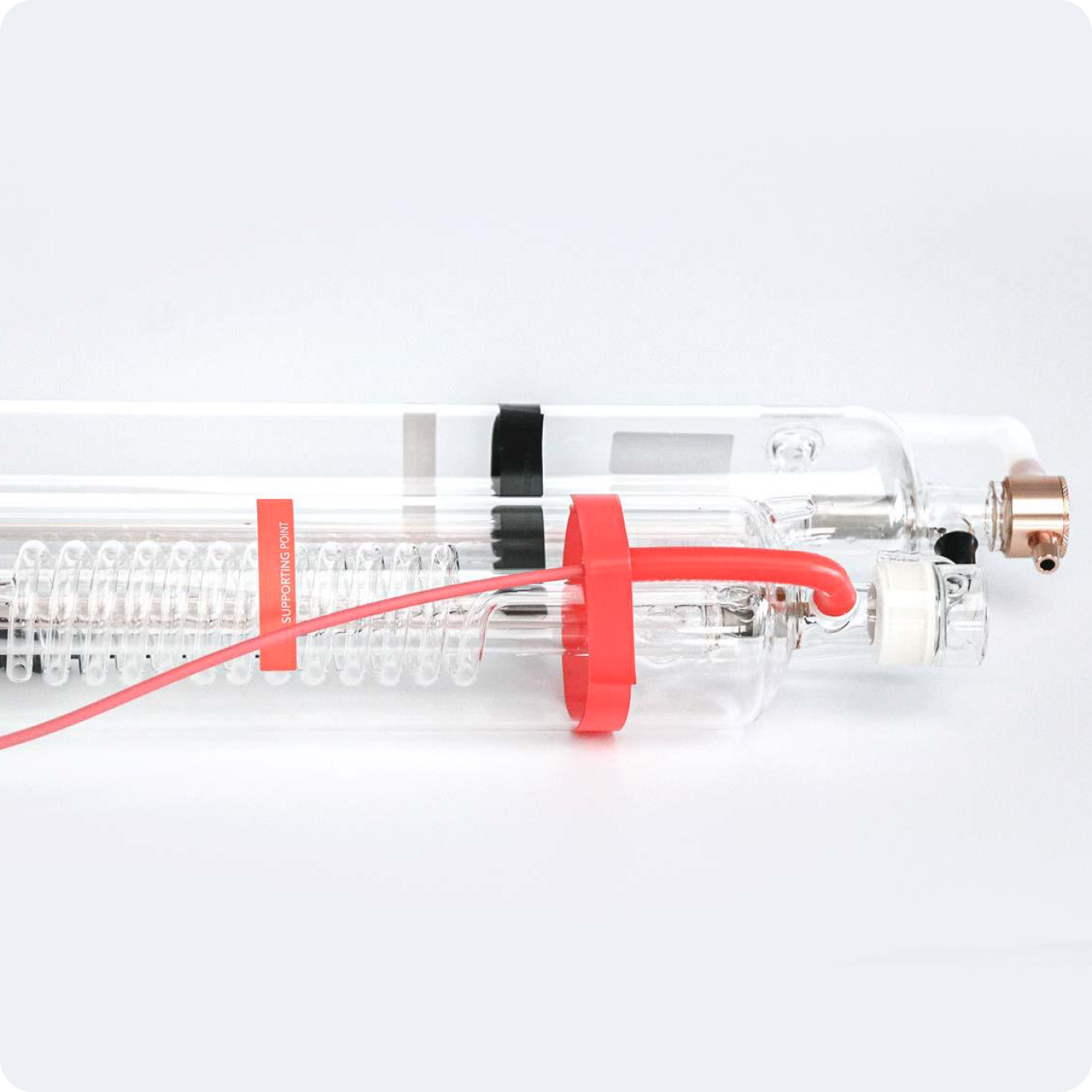

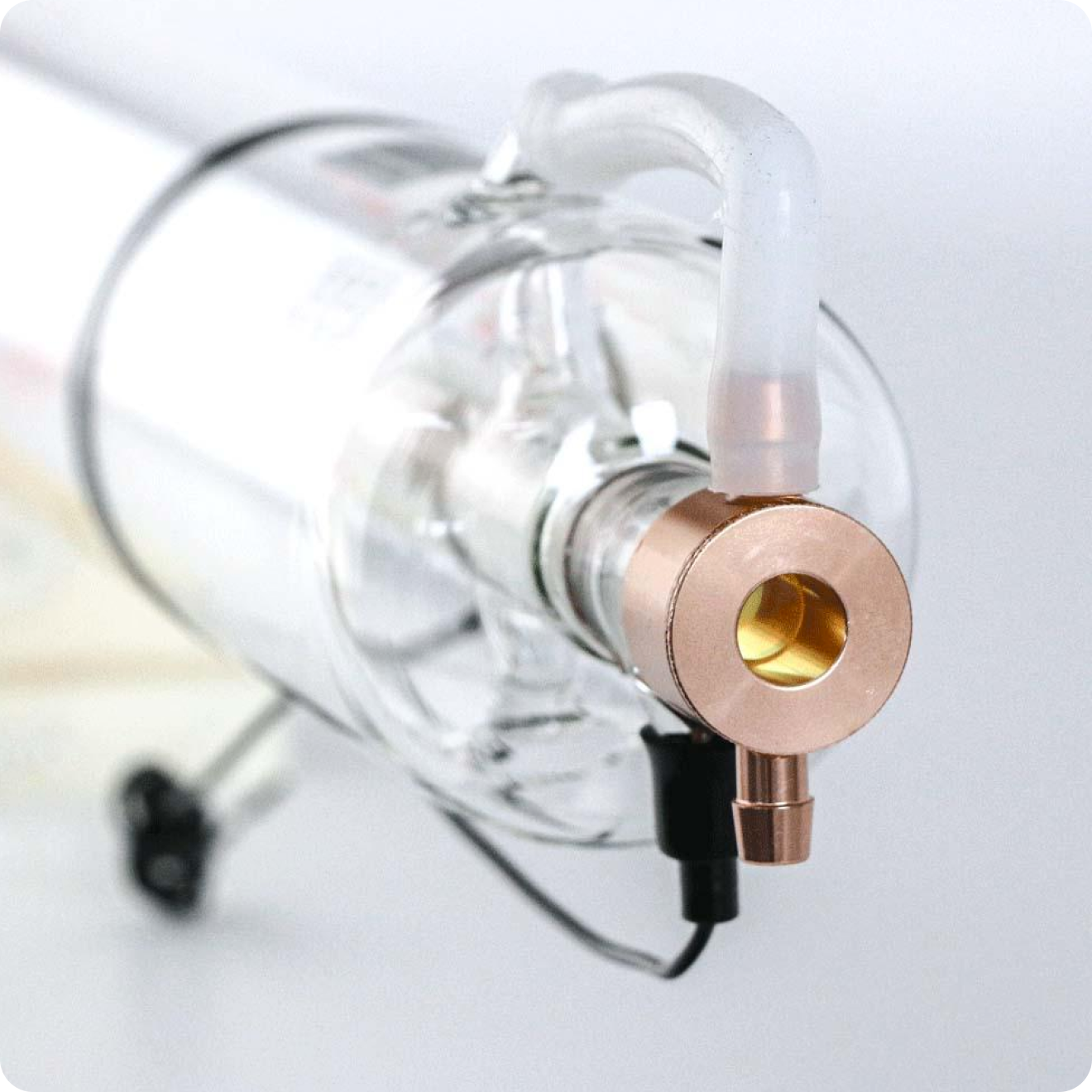

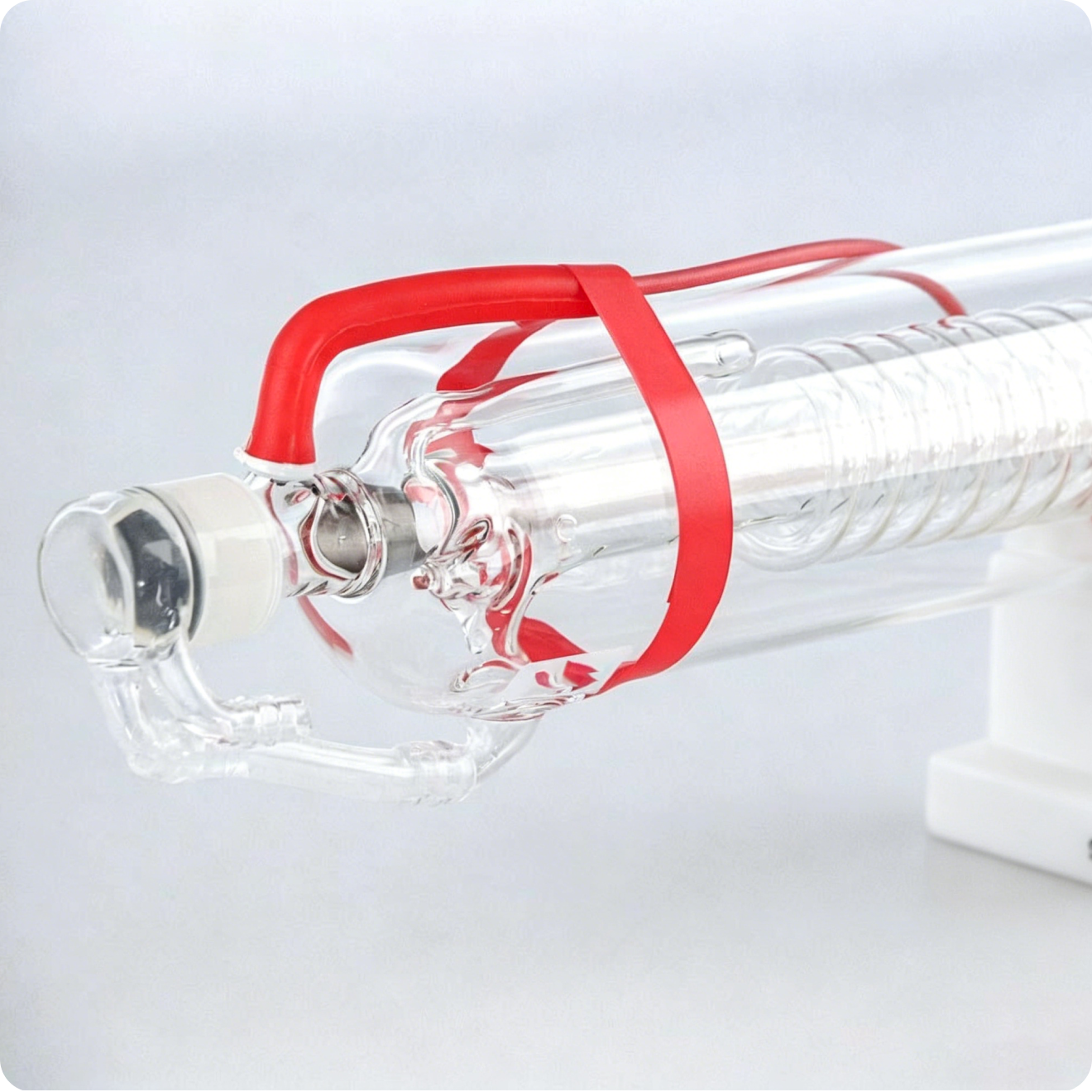

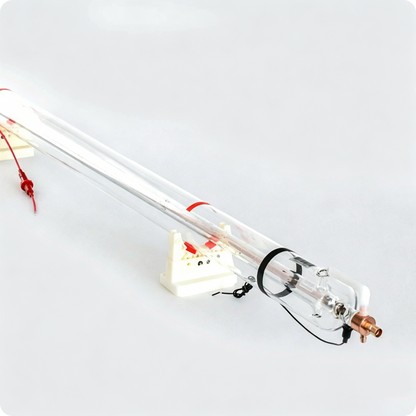

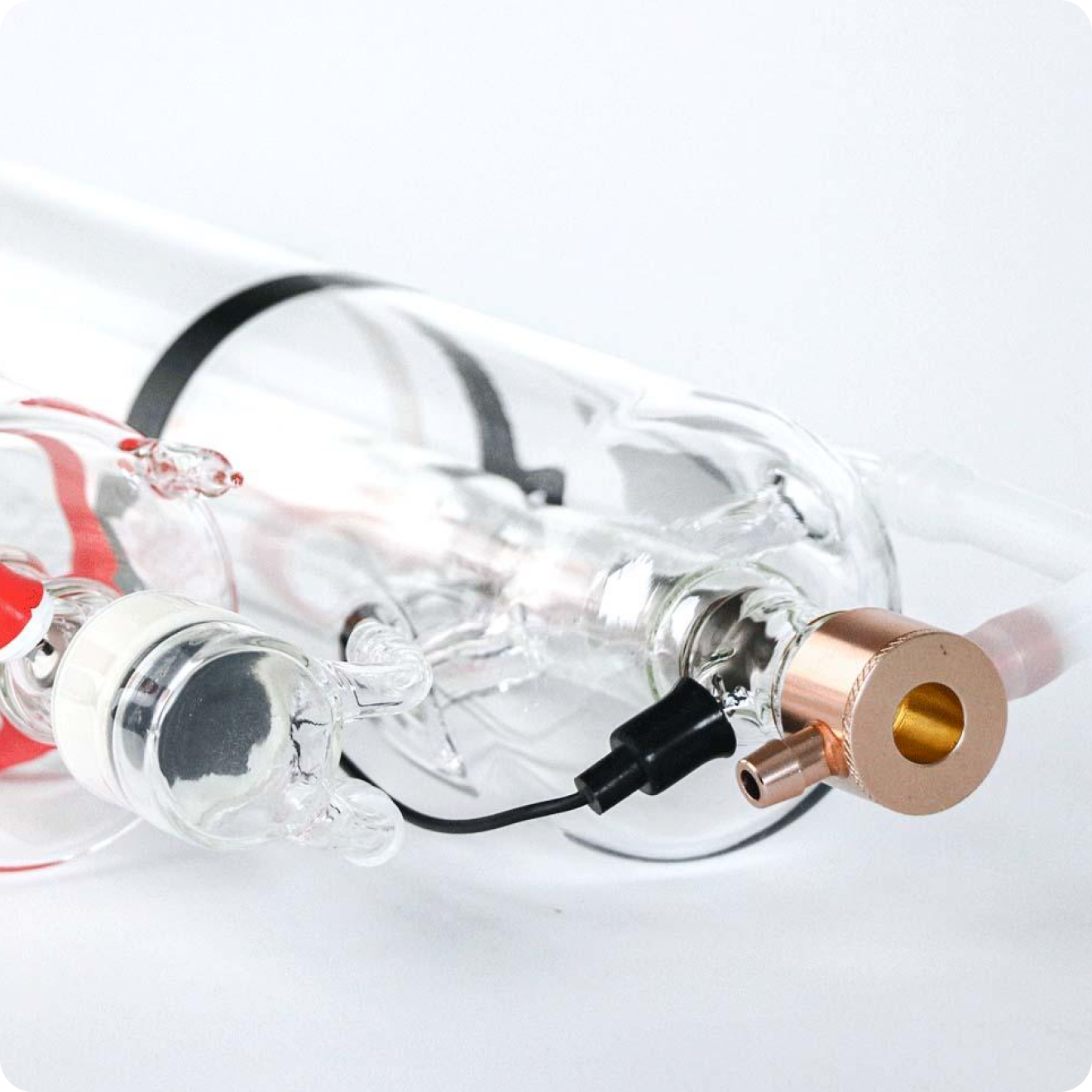

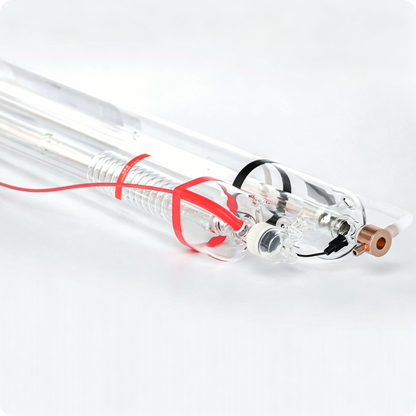

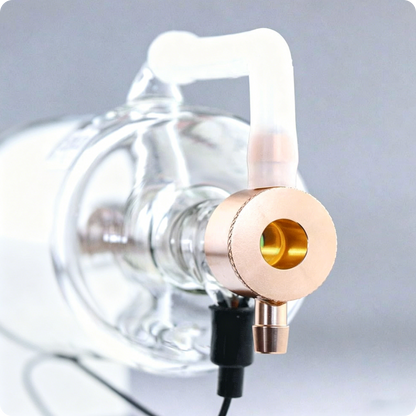

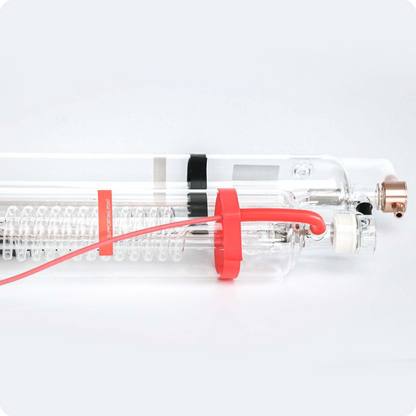

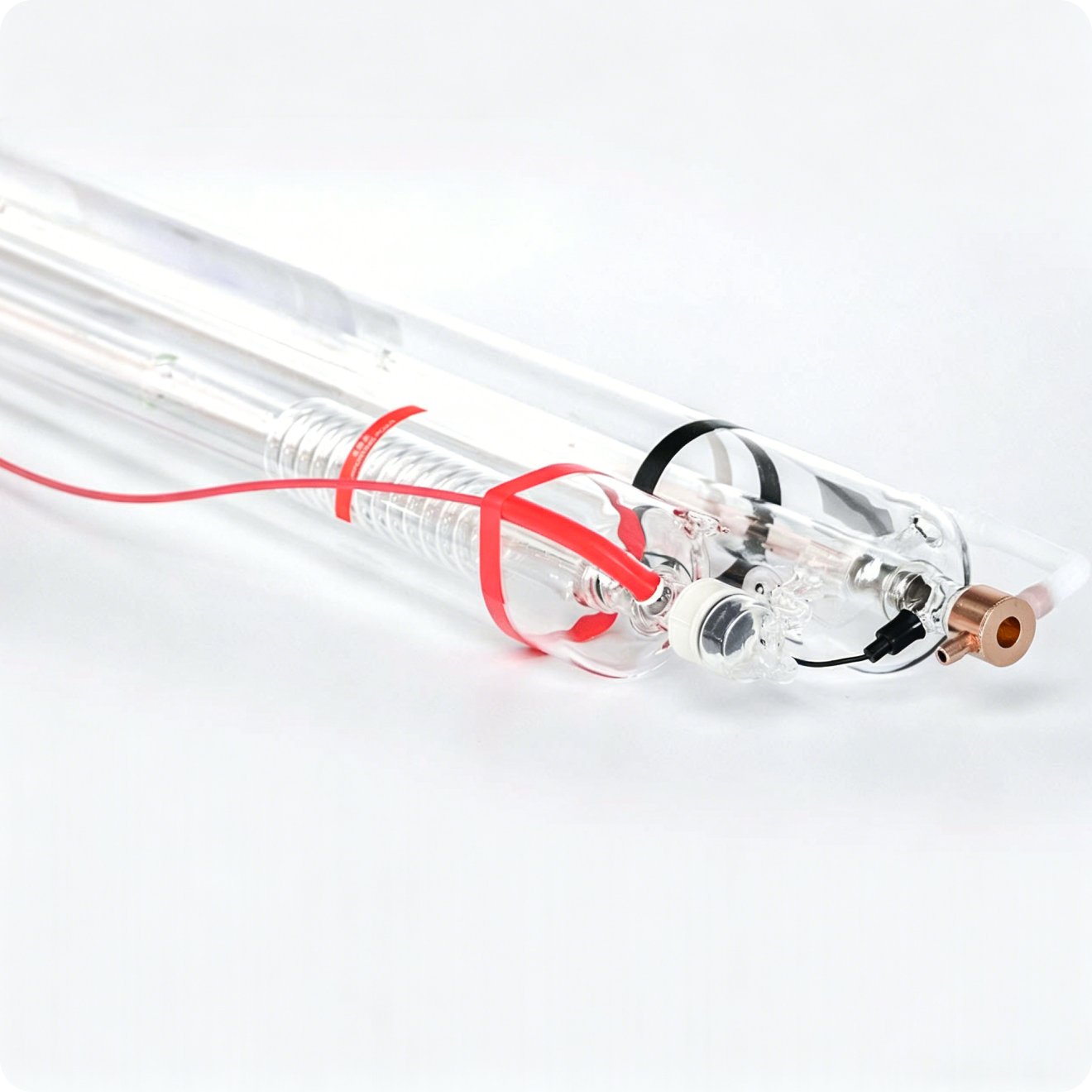

CO2 Glass Laser Tube for Hydra Model

Excellent

$756.00 USD

~~$249.99 USD~~ $756.00 USD

Sold out

Shipping calculated at checkout.

Financing For As Low As /Mo. Apply Now

Model

C100 (For Hydra 9 Gen1/2 Dual Laser System)

C130 (For Hydra 13 Gen1/2 Dual Laser System)

C150 (For Hydra 16 Gen1/2 Dual Laser System)

Upgrade your laser system with a high-performance CO2 Glass Laser Tube, engineered for strong cutting power, stable output, and reliable long-term operation. Designed for both professionals and workshops, this tube delivers consistent performance for engraving and cutting across a wide range of materials.

Built with advanced vacuum coating technology, the CO2 Glass Laser Tube enhances optical efficiency, increases power output, and extends service life—making it a cost-effective solution for high-demand laser applications.

Key Features:

Higher Power, Faster Results – The CO2 Glass Laser Tube delivers strong and stable laser output, enabling faster cutting speeds and deeper engraving on various materials.
Longer Lifespan, Lower Cost – Premium construction ensures extended working hours, reducing replacement frequency and lowering long-term operating costs.
Superior Beam Quality – Fine, consistent beam spot enables cleaner edges, sharper details, and more precise engraving.
Stable Performance You Can Trust – Advanced sealing and gas technology maintain consistent power output for reliable, repeatable results.
Optimized for Continuous Use – Built for long production runs without performance drop, perfect for business and workshop environments.
Efficient Cooling Support – Works with standard water cooling systems to ensure stable operation and protect tube lifespan.
Easy Installation & Replacement – Standardized design makes setup quick and hassle-free, so you can get back to work faster.

Technical Specifications：

Model	Length(mm)	Diameter(mm)	Rated Power(W)	Peak Power(W)
C100	1450	80	100	130
C130	1650	80	130	150
C150	1850	80	150	180

Model: C100 (For Hydra 9 Gen1/2 Dual Laser System)	Rated power: 100W
Wavelength: 10.6μm	Max. power: 130W
Length: 1450±5mm	Stability: ≤±5%
Diameter: 80±1mm	Excitation mode: Electrical excitation
Spot diameter: 5±1mm	Cooling: Water-cooled 15-25℃
Starting current: 5mA	Starting voltage: 24kV
Working voltage: 16kV	Recommended current: 24mA
Beam divergence angle: 3.1mrad	Maximum working current: ≤25mA
Modulated frequency: ≤3kHz	Beam quality: ≤1.1
Laser mode: Multi-low-order mode	Net weight: 2.9kg
Gross weight: 4.3kg	Carton package: 1580173155mm

Model: C130 (For Hydra 13 Gen1/2 Dual Laser System)	Rated power: 130W
Wavelength: 10.6μm	Max. power: 150W
Length: 1650±5mm	Stability: ≤±5%
Diameter: 80±1mm	Excitation mode: Electrical excitation
Spot diameter: 6±1mm	Cooling: Water-cooled 15-25℃
Starting current: 6mA	Starting voltage: 27kV
Working voltage: 17kV	Recommended current: 28mA
Beam divergence angle: 3.1mrad	Maximum working current: ≤30mA
Modulated frequency:≤3kHz	Beam quality: ≤1.1
Laser mode: Multi-low-order mode	Net weight: 3.3kg
Gross weight: 4.8kg	Carton package: 1780173155mm

Model: C150 (For Hydra 16 Gen1/2 Dual Laser System)	Rated power: 150W
Wavelength: 10.6μm	Max. power: 180W
Length: 1850±5mm	Stability: ≤±5%
Diameter: 80±1mm	Excitation mode: Electrical excitation
Spot diameter: 6±1mm	Cooling: Water-cooled 15-25℃
Starting current: 7mA	Starting voltage: 30kV
Working voltage: 20kV	Recommended current: 28mA
Beam divergence angle: 3.1mrad	Maximum working current: ≤30mA
Modulated frequency: ≤3kHz	Beam quality: ≤1.1
Laser mode: Multi-low-order mode	Net weight: 3.76kg
Gross weight: 5.42kg	Carton package: 1980173155mm
